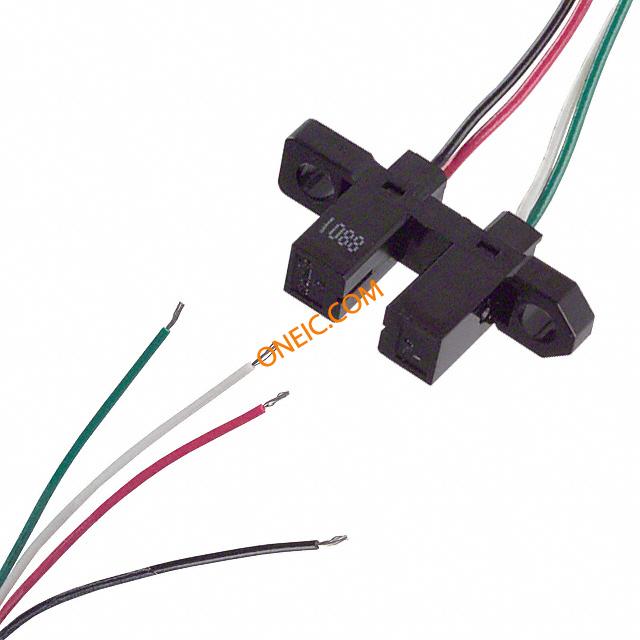

EE-SX1088-W1
| Manufacturer | |
| Description | Photointerrupter Transmissive 3.4mm Phototransistor 4-Pin Optical Switches, Transmissive, Phototransistor Output TRANS PHTOTRANSISTOR OPTO SENSOR VERT SLOT 3.4MM OPTO SWITCH, SLOTTED PHOTOMICROSENSOR, TRANSISTOR Sensor: photoelectric; through-beam (with slot); 3.4mm; -30÷85°C |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 134 Days | Subcategory | Photointerrupter |
| Part # Aliases | 1173617 EESX1088W1NC | Product Category | Optical Switches, Transmissive, Phototransistor Output |
| Standard Package | Bulk | Factory Pack Quantity | 100 |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85414090 | ||
Electrical
| Output | Phototransistor | Fall Time | 4 us |
| Wavelength | 850 nm | Sensor Type | photoelectric |
| Power - Rated | 100 mW | Response Time | 4µs, 4µs |
| Operating Mode | DARK-ON | Voltage Rating | :30V |
| Rise Time (Typ) | 4000(Typ) ns | Output Isolation | :Phototransistor |
| Sensing Distance | 3.4 mm | Voltage - Supply | 30 V |
| Number of Channels | 1 | Voltage - Input (Min) | 30 V |
| Voltage Regulation - Load | 4 V | Current - Input Bias (Max) | :30mA |
| Switch Time (Ton, Toff) (Max) | :4µs | Current - Collector (Ic) (Max) | 20 mA |
| Current - Collector Cutoff (Max) | :20mA | Current - Peak Pulse (10/1000us) | 50 mA |
| Current - LED Trigger (Ift) (Max) | :50mA | Current - Average Rectified (Io) (per Diode) | 50mA |
Mechanical
| Gap | :3.4mm | Depth | :6mm |
| Width | 3.4 mm | Length | :11.4mm |
| Weight | 0.004 | Packaging | Bulk |
| Lead Style | cables | Mounting Type | Chassis Mount |
| Mounting Style | Through Hole | Number of Pins | :4 |
| Optic Material | :Through Hole | Package / Case | Module, Pre-Wired |
Product Info
| Type | Transmissive | Series | EE-S |
| Sensing Method | Transmissive, Slotted | Measuring Range | 3.4mm |
| Number of Units | 1 | Industry Aliases | EE-SX1088-W1 |
| Output Configuration | Phototransistor | ||
Environmental
| Operating Temperature | -25 °C | ||
