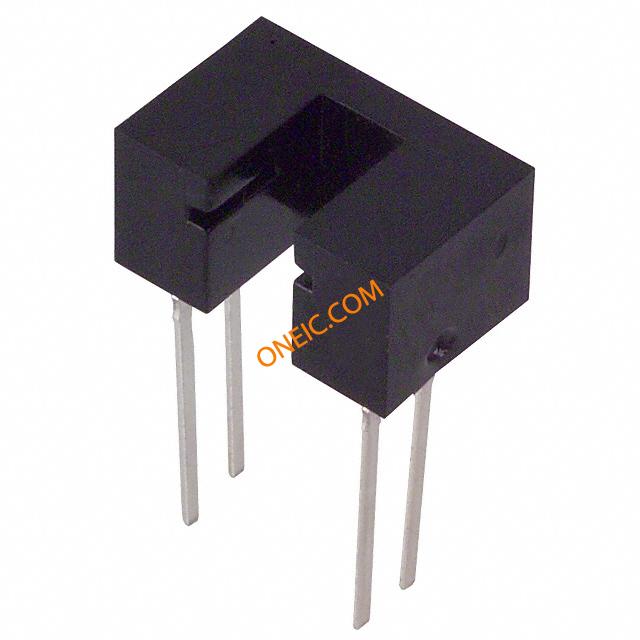

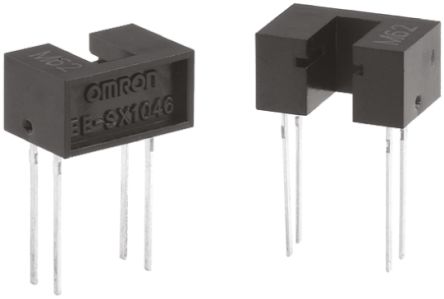

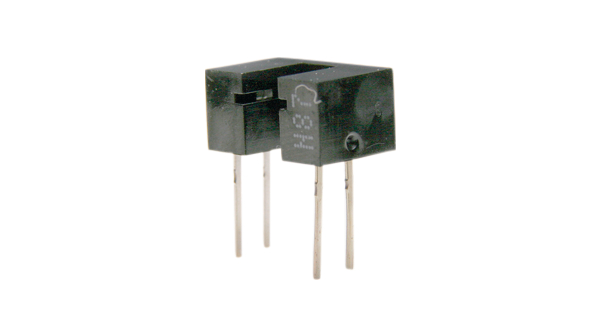

EE-SX1046
| Manufacturer | |
| Description | Optical Switches, Transmissive, Phototransistor Output PHOTOTRANSISTOR Photointerrupter Transmissive 3mm Phototransistor 4-Pin OPTO SENSOR VERT SLOT PC MNT PHOTOMICROSENSOR;HORIZONTALSENSINGAPERTURE;PCBMOUNT;NON-AMPLIFIED 欧姆龙(OMRON) 光电开关 Sensor: photoelectric; through-beam (with slot); Mounting: THT Fork coupler 3 mm 50 mA 30 V 20 mA -25...+85 °C, EE-SX1046, Omron Industrial Automation Omron 通孔安装 槽形光电开关 , 光电晶体管 输出, 4针 |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 293 Days | Subcategory | Photointerrupter |
| Part # Aliases | 644216 EESX1046Q EESX1282M | Product Category | Optical Switches, Transmissive, Phototransistor Output |
| Standard Package | 25 | Factory Pack Quantity | 25 |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Rad Hardened | No | ||
Electrical
| Output | Phototransistor | Fall Time | 4 us |
| Delay Time | 4 | Wavelength | 920 nm |
| Sensor Type | photoelectric | Power - Rated | 100 mW |
| Response Time | 4µs, 4µs | Sensing Range | 0.118" (3mm) |
| Operating Mode | DARK-ON | Rise Time (Typ) | 4 us |
| Current - Output | 20 mA | Sensing Distance | 3 mm |
| Voltage - Supply | 30 V | Number of Channels | 1 |
| Number of Elements | 1 | Current - Switching | 50mA |
| LED Forward Current | 50 mA | Voltage - Breakdown | 4 V |
| Voltage - Input (Min) | 30 | Voltage - Switching DC | 0.4V |
| Power Dissipation (Max) | 100 | Current - Off State (Max) | 50 mA |
| Voltage Regulation - Load | 4 | Current - Collector (Ic) (Max) | 20 mA |
| Current - Peak Pulse (10/1000us) | 50 | Max Propagation Delay @ V, Max CL | 4000(Typ) |
| Propagation Delay tpLH / tpHL (Max) | 4µs | Current - Average Rectified (Io) (per Diode) | 50mA |
Mechanical
| Gap | 3 mm | Size | 10 x 6.5 x 5 mm |
| Width | 3 mm | Height | 6.5mm |
| Length | 10mm | Weight | 3.05 g |
| Packaging | Bulk | Body Finish | Rectangular |
| Termination | Solder | Breaker Type | 4 |
| Mounting Type | Through Hole | Mounting Style | Through Hole |
| Package / Case | PCB Mount | Primary Material | Photoelectric |
| Tape Width - Max | 3 | Number of Contacts | 4 |
| Number of Positions | 4 | ||
Product Info
| Type | Transmissive | Series | EE-SX1046 |
| Function | Vane | Technology | Photoelectric |
| Manufacturer | SX1 | Sensing Method | Transmissive, Slotted |
| Measuring Range | 3mm | Number of Units | 1 |
| Industry Aliases | EE-SX1046 | Other Specifications | 3mm |
| Output Configuration | Phototransistor | ||
Environmental
| Operating Temperature | + 85 C | Operating Temperature - Junction | +85 |
