D7E-3
| Manufacturer | |
| Description | Vibration & Tilt Sensors 50-80 DEG DETECTION SENSOR TILT 50-80DEG 0.1A GRY Screw mounting tilt sensor D7E3 Electromechanical Switch Tilt Switch ON OFF SPST 0.1A TILT SWITCH, SEALED SENSOR,VIBRATION,SEALED,TILT,50TO80DEGREEOPERATINGANGLE 欧姆龙(OMRON) 限位开关 Sensor: tilt; Operating temp: -25÷60°C; IP67; Output conf: SPST-NC Omron 50 → 80 ° 倾斜开关, 100 mA, 36.4 x 23.6 x 23.1 mm, -25 → +60°C Sealed Tilt Switch 50-80° IP67 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Tilt Sensor | Part # Aliases | 1007618 367241 |
| Product Category | Vibration & Tilt Sensors | Standard Package | 100 |
| Factory Pack Quantity | 100 | ||
Compliance
| RoHS | Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85365080 | ||
Electrical
| Return Loss | 25 deg | Sensor Type | :Tilt |
| Voltage Rating | 30V | Current - Output | 100mA |
| Voltage - Supply | 5 V ~ 30 V | Contact Resistance | 300mΩ |
| Differential Travel | 50 → 80 ° | Current Rating (Max) | 100 mA |
| Contact Rating @ Voltage | 0.1 mA at 5 VDC to 100 mA at 30 VDC | DC contacts rating (at resistance load) | 0.1 A / 30 VDC |
Mechanical
| Depth | 23.1mm | Width | 23.6mm |
| Length | 36.4mm | Weight | 0.016 |
| Packaging | Bulk | Mounting Type | Quick Connect, Solder Terminal |
| Terminal Type | Solder Tag | Mounting Style | Flange |
| Package / Case | Cylinder | Primary Material | Vibration |
| Termination Style | Quick Connect | ||
Product Info
| Series | D7E-3 | Function | Level |
| CAD Drawing | 3D CAD Model | Number of Units | 1 |
| Output Configuration | SPST-NC | ||
Environmental
| NEMA Frame Size | :IP67 | Operating Range | 50° ~ 80° |
| Ingress Protection | IP67 | Operating Temperature | -25°C ~ 60°C |
Documents & Media
PDF Document
PDF Document
Similar Parts
D7E2
omron electronics
Electromechanical Switch Detect Switch ON OFF SPST 0.1A D7E2 SENSOR, VIBRATION, 30V, 100 TO 170 GALS
$45.3000
Details

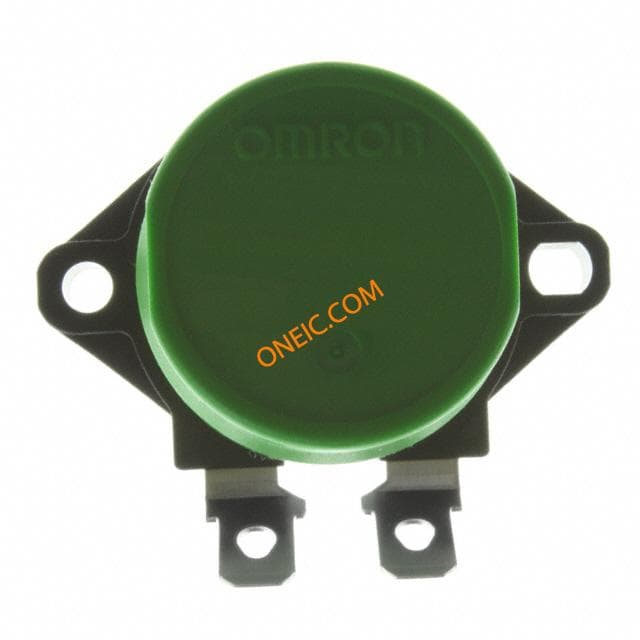

D7E-2
