B3W-1050
| Manufacturer | |
| Description | Tactile Switches SPST-NO GP PROJ 6X6 Switch Tactile N.O. SPST Projected Plunger PC Pins 0.05A 24VDC 1000000Cycles 1.57N Thru-Hole Bag Plunger Tactile Switch, SPST-NO 0.05 A @ 24 V dc 3.9mm Switch Tactile N.O. SPST Projected Plunger PC Pins 0.05A 24VDC 1000000Cycle 1.57N Thru-Hole Bag SWITCH, PROJECTED, SPNO SWITCH TACTILE SPST-NO 0.05A 24V Switch,KEY,Sealed,MECHANICAL,SQUARE,NOGROUNDTERM.,PROJECTEDPLUNGER 欧姆龙(OMRON) 微动开关 Microswitch; 1-position; SPST-NO; 0.05A/24VDC; THT; 1.57N; 6x6mm Tactile Switch Mounting: PC Board Operating direction: Vertical Operating force: 160 gf Travel: - Dimensions: 6.5x6 mm PCB Switch 24 VDC 50 mA Through Hole white, B3W-1050, Omron Electronic Components Omron 柱塞 触觉开关 , 单刀单掷 - 常开, 0.05 A@ 24 V 直流 3.9mm |
| Category |
Business
| Lead Time | 96 Days | Subcategory | Switch Tactile |
| Part # Aliases | 176987 364117 B3W1050BYOMZ | Product Category | Tactile Switches |
| Standard Package | 100 | Factory Pack Quantity | 100 |
Compliance
| RoHS | Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85365007 |
Electrical
| Circuit | SPST-NO | Voltage Rating | 24 V |
| Number of Poles | 1 | Switch Function | Off-Mom |
| Switching Voltage | OFF-(ON) | Contact Resistance | :100mohm |
| Dielectric Strength | :500V | Current Rating (Max) | 50 mA |
| Current - Max/Contact | :50mA | Insulation Resistance | :100Mohm |
| Switch Function/Rating | N.O. | Current Rating - Filter | :1mA |
| Contact Rating (Current) | 0.05 A @ 24 V dc | Contact Rating @ Voltage | :50mA |
| Connector - Voltage Input | :Solder | Voltage - Supply (Vcc/Vdd) | :24V |
| DC contacts rating (at resistance load) | 0.05 A / 24 VDC | ||
Mechanical
| Seal | Rubber | Depth | :7.3mm |
| Shape | square | Width | :6mm |
| Height | 7.3 | Length | :6mm |
| Weight | 0.003 | Outline | 6.50mm x 6.00mm |
| Packaging | Bag | Lead Style | for PCB, straight |
| Size - Body | 6 x 6mm | Termination | PCBPins |
| Contact Form | SPST | Height (Max) | 7.3mm |
| Actuator Type | Plunger | Mounting Type | Through Hole |
| Switch Travel | 0.25mm | Terminal Type | PC Pins |
| Actuator Color | White | Connector Type | No |
| Contact Finish | Silver | Mounting Style | Through Hole |
| Actuator Length | 3.9mm | Operating Force | 1.57 N |
| Length - Overall | 6.6 | Pitch - Connector | 4.5x6.5mm |
| Termination Style | Solder Pin | Actuator Style/Size | Projected Plunger |
| Number of Positions | :10000000 | Actuator Orientation | Top Actuated |
| Color - Actuator/Cap | :White | Height - Seated (Max) | 7.3 mm |
| Mounting Hole Diameter | 1mm | Switch Actuation Level | SPST |
| Contact Layout, Typical | SPST-NO | Torque - Rated (oz-in / mNm) | 1.57N |
| Actuator Height off PCB, Vertical | 7.30mm | ||
Product Info
| Type | Tactile | Series | B3W |
| Features | Sealed - Fully | CAD Drawing | 3D CAD Model |
| Switch Type | microswitch | Illumination | Non-Illuminated |
| Number of Units | 1 | Industry Aliases | B3W-1050 |
| Other Specifications | 0.25mm | Application Specifics | Foraudio,officeandcommunicationsequipment,measuringinstruments,industrialrobots,VCRs,TVs,andvendingmachines |
| Contacts Configuration | SPST-NO | ||
Environmental
| Mechanical Life | 300,000 Cycles | Switching Cycles | :10000000 |
| Ingress Protection | IP67 - Dust Tight, Waterproof | Operating Temperature | - 25 C to + 70 C |
Documents & Media
Similar Parts
B32-1200
omron electronics
Switch Access Tactile Switch Square Key Top Bulk CAP TACTILE SQUARE LIGHT GRAY Cap; Pushbutton; Light Color; 9 mm; 9 mm; RoHS Compliant Switch Accessories GRY 9X9 B3F KEYCAP CAP, CREAM Cap,Pushbutton;LightColor;9mm;9mm;RoHSCompliant 欧姆龙(OMRON) 微动开关 Button; square; Application: B3F-4x5x, B3F-5x5x, B3W-4x5x; 9x9mm Switch Cap Switch Type: Tactile Shape: Square Color: Gray, Light Size: 9.00mm L x 9.00mm W x 5.50mm H Key cap ivory 9 x 9 mm, B32-1200, Omron Electronic Components
B32-1040
omron electronics
Switch Access Tactile Switch Square Key Top Bulk CAP TACTILE SQUARE BLUE Accessory; Blue; 4 mm; B32 Series; PCB; RoHS Compliant Switch Accessories BLUE 4X4 B3F KEYCAP CAP, BLUE Accessory;Blue;4mm;B32Series;PCB;RoHSCompliant 欧姆龙(OMRON) 其它传感器附件 Switch Cap Switch Type: Tactile Shape: Square Color: Blue Size: 4.00mm L x 4.00mm W x 5.50mm H Key cap blue 4 x 4 mm, B32-1040, Omron Electronic Components
B32-2010
omron electronics

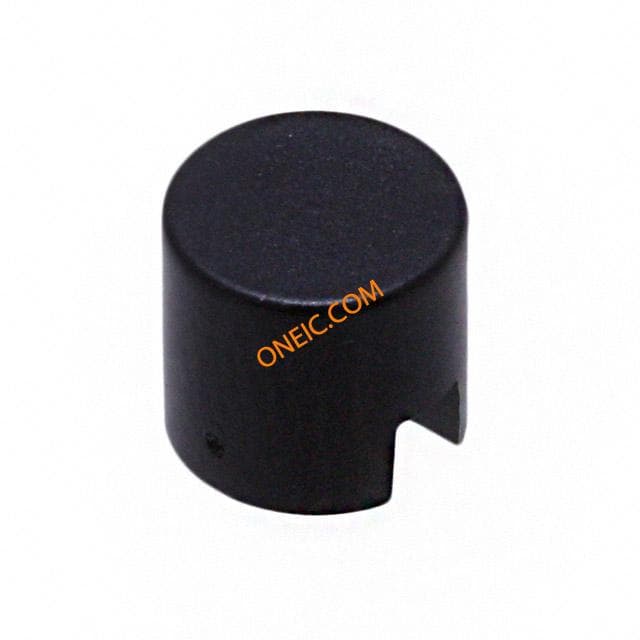

Switch Access Tactile Switch Round Key Top Bulk CAP TACTILE ROUND BLACK Black Tactile Switch Cap For Use With B3F Series, B3W Series Switch Accessories Key Cap CAP, 6MM, BLACK, FOR B3F/B3W Button; round; Ø6mm; Colour: black Switch Cap Switch Type: Tactile Shape: Round Color: Black Size: 6.00mm Dia x 5.50mm H Key cap black, B32-2010, Omron Electronic Components 黑色 轻触式开关帽, 使用于B3F 系列、B3W 系列
B32-1250
omron electronics
Switch Access Key Switch Key Top CAP TACTILE SQUARE GREEN Green Tactile Switch Cap For Use With B3F Series, B3W Series Switch Accessories GREEN 9X9 B3F KEYCAP 欧姆龙(OMRON) 微动开关 Button; square; Application: B3F-4x5x, B3F-5x5x, B3W-4x5x; 9x9mm Switch Cap Switch Type: Tactile Shape: Square Color: Green Size: 9.00mm L x 9.00mm W x 5.50mm H Key cap green 9 x 9 mm, B32-1250, Omron Electronic Components 绿色 轻触式开关帽, 使用于B3F 系列、B3W 系列
B32-1080
Omron Electronics
Switch Accessories RED 4X4 B3F KEYCAP Switch Access Tactile Switch Square Key Top Bulk CAP TACTILE SQUARE RED Switch; KeyCap; Red; 4 x 4 mm; Panel; RoHS Compliant CAP, RED Switch,KeyCap;Red;4x4mm;Panel;RoHSCompliant 欧姆龙(OMRON) 微动开关 Button; square; 4x4mm; Colour: red Switch Cap Switch Type: Tactile Shape: Square Color: Red Size: 4.00mm L x 4.00mm W x 5.50mm H Key cap red 4 x 4 mm, B32-1080, Omron Electronic Components
B32-1030
Omron Electronics
Switch Accessories 4X4 KEYCAP YELLOW Switch Access Tactile Switch Square Key Top Bulk CAP TACTILE SQUARE YELLOW CAP, YELLOW Cap,Pushbutton;Yellow;4mm;4mm;RoHSCompliant 欧姆龙(OMRON) 微动开关 Button; square; 4x4mm; Colour: yellow Switch Cap Switch Type: Tactile Shape: Square Color: Yellow Size: 4.00mm L x 4.00mm W x 5.50mm H Key cap yellow 4 x 4 mm, B32-1030, Omron Electronic Components
B32-1050
Omron Electronics
Switch Accessories Green 4x4 mm Key Top CAP TACTILE SQUARE GREEN Switch Access Key Switch Key Top CAP, GREEN 欧姆龙(OMRON) 微动开关 Switch Cap Switch Type: Tactile Shape: Square Color: Green Size: 4.00mm L x 4.00mm W x 5.50mm H Key cap green 4 x 4 mm, B32-1050, Omron Electronic Components
B32-2000
Omron Electronics
Switch Accessories Key Cap Switch Access Tactile Switch Round Key Top Bulk CAP TACTILE ROUND LIGHT GRAY Grey Tactile Switch Cap For Use With B3F Series, B3W Series 欧姆龙(OMRON) 微动开关 Switch Cap Switch Type: Tactile Shape: Round Color: Gray, Light Size: 6.00mm Dia x 5.50mm H Key cap ivory, B32-2000, Omron Electronic Components 灰色 轻触式开关帽, 使用于B3F 系列、B3W 系列
B32-1070
Omron Electronics
Switch Accessories LT GRN 4mm KEY CAP CAP TACTILE SQUARE LIGHT GREEN Switch Access Tactile Switch Key Top CAP, 4X4MM, DARK GREEN, FOR B3F/B3FS/B3W Switch Cap Switch Type: Tactile Shape: Square Color: Green, Light Size: 4.00mm L x 4.00mm W x 5.50mm H Key cap dark green 4 x 4 mm, B32-1070, Omron Electronic Components
B32-1000
Omron Electronics
Switch Accessories GRAY 4X4 B3F KEYCAP Switch Access Tactile Switch Square Key Top Bulk CAP TACTILE SQUARE LIGHT GRAY Cap; Pushbutton; Light Color; 4 mm; 4 mm; RoHS Compliant CAP, LIGHT GREY Cap,Pushbutton;LightColor;4mm;4mm;RoHSCompliant 欧姆龙(OMRON) 微动开关 Button; square; 4x4mm; Colour: ivory Switch Cap Switch Type: Tactile Shape: Square Color: Gray, Light Size: 4.00mm L x 4.00mm W x 5.50mm H Key cap ivory 4 x 4 mm, B32-1000, Omron Electronic Components
B32-1060
Omron Electronics
Switch Accessories 4X4 KEYCAP WHITE Switch Access Tactile Switch Square Key Top Bulk CAP TACTILE SQUARE WHITE KEYCAP Cap,Switch;White;4mm;4mm;RoHSCompliant 欧姆龙(OMRON) 微动开关 Button; square; 4x4mm; Colour: white Switch Cap Switch Type: Tactile Shape: Square Color: White Size: 4.00mm L x 4.00mm W x 5.50mm H Key cap white 4 x 4 mm, B32-1060, Omron Electronic Components
B32-1240
Omron Electronics
Switch Accessories BLUE 9X9 B3F KEYCAP Switch Access Tactile Switch Square Key Top Bulk CAP TACTILE SQUARE BLUE CAP, BLUE Accessory;Blue;9mm;B32Series;PCB;RoHSCompliant 欧姆龙(OMRON) 轻触式开关 Switch Cap Switch Type: Tactile Shape: Square Color: Blue Size: 9.00mm L x 9.00mm W x 5.50mm H Key cap blue 9 x 9 mm, B32-1240, Omron Electronic Components
B32-1400
Omron Electronics

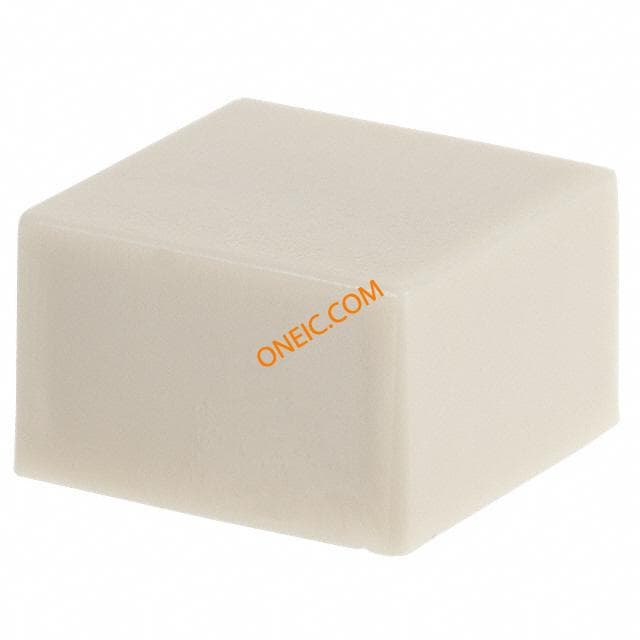

Switch Accessories KEY CAP CAP TACTILE SQUARE LIGHT GRAY Switch Cap Switch Type: Tactile Shape: Square Color: Gray, Light Size: 9.00mm L x 9.00mm W x 5.50mm H
