TEH100MR075JE
| Manufacturer | |
| Description | Current Sense Resistors - Through Hole 100W 0.075 ohm 5% RES 0.075 OHM 100W 5% TO247 Res Thick Film 0.075 Ohm 5% 100W Molded TO-247 RDL Thru-Hole |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Current Sense Resistors - Through Hole | Standard Package | 35 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Tolerance | ±5% | Resistance | 75 mOhms |
| Power (Watts) | 100W | Power - Rated | 100 W |
| Voltage Rating | 350 V | Resistance (Ohms) | 0.075 |
Mechanical

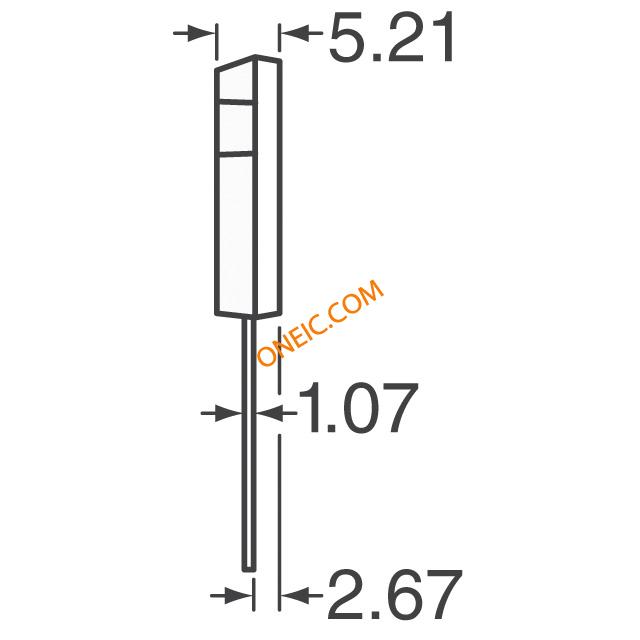

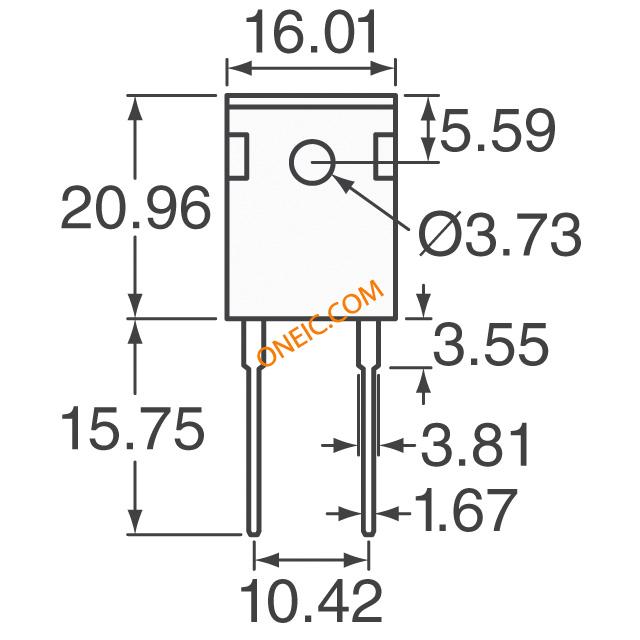

| Width | 16.01 mm | Height | 0.825" (20.96mm) |
| Packaging | Tube | Lead Spacing | 10.42 mm |
| Pin Diameter | 1.67 mm | Package / Case | TO-247-2 |
| Size / Dimension | 0.620" L x 0.195" W (15.75mm x 4.95mm) | Termination Style | Radial |
| Number of Terminations | 2 | Supplier Device Package | TO-247 |
Product Info
| Series | TEH100 | Features | Moisture Resistant, Non-Inductive |
| Composition | Thick Film | ||
Environmental
| Operating Temperature | + 25 C to + 175 C | Temperature Coefficient | 50 PPM / C |
Documents & Media
PDF Document
