LVK25R010FER
| Manufacturer | |
| Description | Current Sense Resistors - SMD .01ohm 1% 4 Terminal RES 0.01 OHM 2W 1% 1224 WIDE Res Metal Alloy 1224 0.01 Ohm 1% 2W ±100ppm/°C Epoxy Resin Wide Terminal SMD T/R RESISTOR, 1224 KELVIN R01 Resistor; Precision; Res 0.010 Ohms; Tol 1%; 2W; Current Sense; 4 Terminal Precision resistor, SMD 10 mOhm 2 W ± 1 %, LVK25R010FER, Ohmite |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | 4 Terminal | Other Names | LVK25R010FERTR |
| Product Category | Current Sense Resistors - SMD | Standard Package | 1,000 |
| Factory Pack Quantity | 1000 | ||
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85332100 | ||
Electrical
| Tolerance | 1 % | Resistance | 10 mOhms |
| Range deg/s | :OHMITE - LVK Series | Power (Watts) | 2W |
| Power - Rated | 2 W | Resistance (Ohms) | 0.01 |
| Power - Peak Pulse | 2 W | Resistance Tolerance | :± 1% |
Mechanical
| Depth | :0.5mm | Width | 6.4 mm |
| Height | 0.028" (0.70mm) | Length | :3.2mm |
| Weight | 0.377 | Base Type | :1224 [3060 Metric] |
| Packaging | Reel | Termination | SMT |
| Number of Pins | :2 | Package / Case | 0.5 mm |
| Package Cooled | 1224 (3264 mm) | Material - Core | Metal Element |

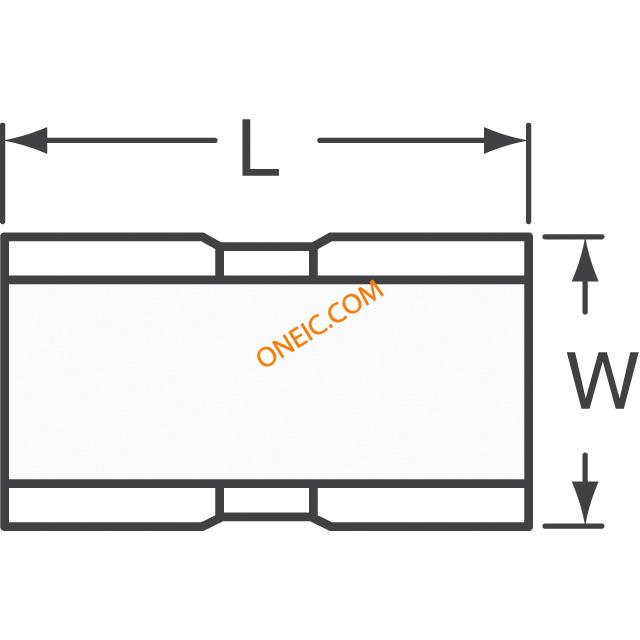

| Material Finish | :MSL 1 - Unlimited | Size / Dimension | 6.4 mm W x 3.2 mm L x 0.5 mm H |
| Termination Style | SMD/SMT | Resistive Material | :Thick Film |
| Mounting Hole Diameter | 1225 (Reversed) | Number of Terminations | 4 |
| Supplier Device Package | 1224 | ||
Product Info
| Series | LVK | Features | Current Sense, Moisture Resistant |
| Composition | Thick Film | ||
Environmental
| Operating Temperature | - 40 C to + 125 C | Temperature Coefficient | 100 PPM / C |
