L225J5K0E
| Manufacturer | |
| Description | Wirewound Resistors - Chassis Mount 225watt 5K 5% RES CHAS MNT 5K OHM 5% 225W Resistor;Wirewound;Res 5 Kilohms;Pwr-Rtg 225 W;Tol 5%;Lug;Tubular Wirewound Resistors 225watt 5K 5% Res Wirewound 5K Ohm 5% 225W ±260ppm/°C Ceramic Silicon RDL Lug Bolt-On RESISTOR, POWER, 5KOHM, 225W, 5% Resistor; Wirewound; Res 5 Kilohms; Pwr-Rtg 225 W; Tol 5%; Lug; Vitreous Enamel |
| Category |
Business
| Product | Power Resistors Wirewound Vitreous Enamel | Product Category | Wirewound Resistors |
| Standard Package | 1 | ||
Compliance
| RoHS | Compliant | Tariff No | 85331000 |
Electrical
| Tolerance | ±5% | Resistance | 5 kOhms |
| Range deg/s | :OHMITE - L225 Series | Power (Watts) | 225W |
| Power - Rated | 225 W | Voltage Rating | 4.595 kV |
| Resistance (Ohms) | 5k | Power - Peak Pulse | 225 W |
| Resistance Tolerance | :± 5% | Resistor - Base (R1) | :Wirewound |
Mechanical
| Weight | 0.318 | Diameter | 28.6 mm |
| Packaging | Bulk | Lead Style | Solder Lugs |
| Termination | Lug | Package / Case | Radial, Tubular |
| Package Cooled | Vitreous Enamel | Material - Core | Wirewound |
| Mounting Feature | Brackets (not included) | Size / Dimension | 1.126" Dia x 10.500" L (28.60mm x 266.70mm) |
| Termination Style | Solder Lug | Coating, Housing Type | Vitreous Enamel Coated |
Product Info
| Type | Vitreous Enamel Power Wirewound Resistors | Series | 270 |
| Features | Flame Retardant Coating | Composition | Wirewound |
Environmental
| Operating Temperature | + 25 C to + 350 C | Temperature Coefficient | ±260ppm/°C |
Documents & Media
Similar Parts
18E-100
Ohmite
Resistor Hardware RES MOUNTING BKT BRACKET MOUNTING FOR 225W RES Clip; Mounting; Resistor MOUNTING BRACKET, 200/210/270 RES Clip, Mounting, Resistor, Standard Plated Steel
18-10
Ohmite
Resistor Hardware RES MOUNTING BRACKET MTG.BRACKETS D77182 PACK OF 10
18-100
Ohmite
Resistor Hardware RES MOUNTING BKT BRACKET MOUNTING FOR 225W RES
D225K5K0E
Ohmite
Wirewound Resistors - Chassis Mount 225watt 5K 10% RESISTOR POWER ADJ 5K OHM 225W Wirewound Resistors 225watt 5K 10% Res Wirewound 5K Ohm 10% 225W ±260ppm/°C Ceramic RDL Lug Bolt-On RESISTOR, WIREWOUND, 5KOHM, 225W, 10% Resistor; Wirewound; Res 5 Kilohms; Pwr-Rtg 225 W; Tol 10%; Lug; Adjustable Tubular
7PA200E
Ohmite
Resistor Hardware THRU-BOLT HARDWARE 225W MOUNTING HDWR THRU BOLT 225WATT Kit; Resistor; Mounting; Thru-Bolt; 11.5in long Thru-Bolts And Mounting Brackets THRU-BOLT, 200/210/270 RESISTOR Kit, Resistor, Mounting, Thru-Bolt; 11.5In Long
18BE-10
Ohmite
Resistor Hardware RES MOUNTING BKT MOUNTING BRACKETS PACK OF 10
6017E
Ohmite
Resistor Hardware MICA WASHER WASHER, MICA D85804 BAG OF 100 Washer; Mica; Insulating Washers Insulating 0.75in 1.5in WASHER Washer, Mica, Insulating
6003E
Ohmite
Resistor Hardware METAL WASHER WASHER, CNTR D85560 BAG OF 100 CENTERING WASHER, 200/210/270 RES Mounting; 175, 225 W; 0.25 In.; 1.125 In. (Outer), 0.250 In. (Inner)
18S-10
Ohmite
Resistor Hardware RES MOUNTING BKT MOUNTING BRACKETS PACK OF 10
6016E
Ohmite
Resistor Hardware MICA WASHER WASHER, MICA D85843 BAG OF 100

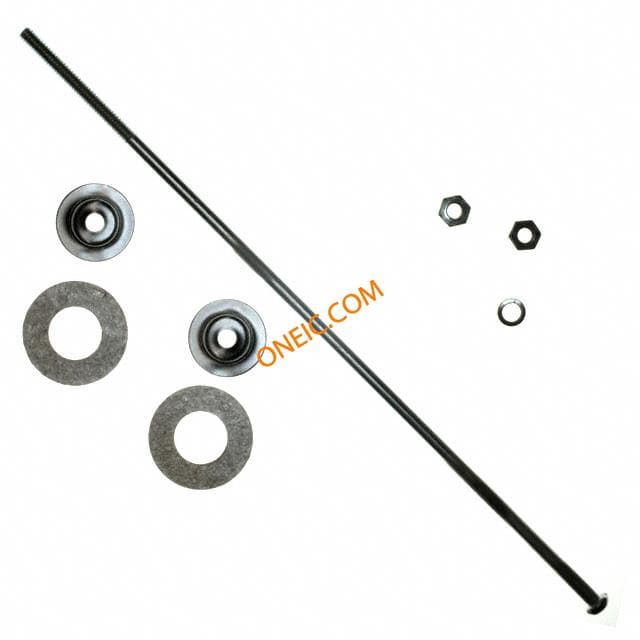

7PA200
Ohmite
Resistor Hardware THRU-BOLT HARDWARE 225W MOUNTING HDWR THRU BOLT 225WATT Thru-Bolts And Mounting Brackets THRU-BOLT, 200/210/270 RESISTOR
18B-10
Ohmite
Resistor Hardware RES MOUNTING BKT MOUNTING BRACKETS PACK OF 10 Resistor Mounting Bracket
18SE-10
Ohmite
Resistor Hardware RES MOUNTING BKT MOUNTING BRACKETS PACK OF 10 MOUNTING BRACKET, 200/210/270 RES MOUNTING BRACKET, 200/210/270
6017
Ohmite
WASHER, MICA D85804 BAG OF 100 Resistor Mounting Hardware Use With Centering Washers
6003
Ohmite
WASHER, CNTR D85560 BAG OF 100 Washers Centering 0.25in 1.125in 0.25

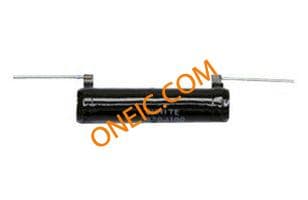

18E-10
Ohmite
MTG.BRACKETS D77182 PACK OF 10 Resistor Hardware RES MOUNTING BKT MOUNTING BRACKET, 200/210/270 RES Ohmite 电阻器安装支架, 适用于200 系列电阻器、210 系列电阻器、270 系列电阻器、280 系列电阻器
18SE-100
Ohmite
MOUNTING BRACKET PACK OF 100 Clip; Mounting; Resistor Resistor Hardware Resistor Hardware MOUNTING BRACKET Hardware, Mounting Bracket, For 175 and 225 Watt Resistors , Spring Steel
18S-100
Ohmite
MOUNTING BRACKET PACK OF 100
6016
Ohmite
WASHER, MICA D85843 BAG OF 100
9/BRACKET
OHMITE
MOUNTING BRACKET FOR 200, 210, 270 RESISTORS
