L225J10K
| Manufacturer | |
| Description | Wirewound Resistors - Chassis Mount 225watt 10K 5% RES CHAS MNT 10K OHM 5% 225W Wirewound Resistors 225watt 10K 5% Res Wirewound 10K Ohm 5% 225W ±260ppm/°C Ceramic Silicon RDL Lug Bolt-On |
| Category |
Business
| Product | Power Resistors Wirewound Vitreous Enamel | Lead Time | 56 Days |
| Subcategory | Resistor Fixed Single-Other Mounting | Product Category | Wirewound Resistors |
| Standard Package | 1 | ||
Compliance
| RoHS | Contains lead / RoHS non-compliant | ||
Electrical
| Tolerance | ±5% | Resistance | 10 kOhms |
| Power (Watts) | 225W | Power - Rated | 225 W |
| Voltage Rating | 4.595 kV | Resistance (Ohms) | 10k |
Mechanical
| Diameter | 28.6 mm | Packaging | Bulk |
| Lead Style | Solder Lugs | Package / Case | Radial, Tubular |
| Mounting Feature | Brackets (not included) | Size / Dimension | 1.126" Dia x 10.500" L (28.60mm x 266.70mm) |
| Termination Style | Solder Lug | Coating, Housing Type | Vitreous Enamel Coated |
Product Info
| Type | Vitreous Enamel Power Wirewound Resistors | Series | 270 |
| Features | Flame Retardant Coating | Composition | Wirewound |
| For Use With/Related Products | L225J10KE | ||
Environmental
| Operating Temperature | + 25 C to + 350 C | Temperature Coefficient | ±260ppm/°C |
Documents & Media
Similar Parts
18E-100
Ohmite
Resistor Hardware RES MOUNTING BKT BRACKET MOUNTING FOR 225W RES Clip; Mounting; Resistor MOUNTING BRACKET, 200/210/270 RES Clip, Mounting, Resistor, Standard Plated Steel

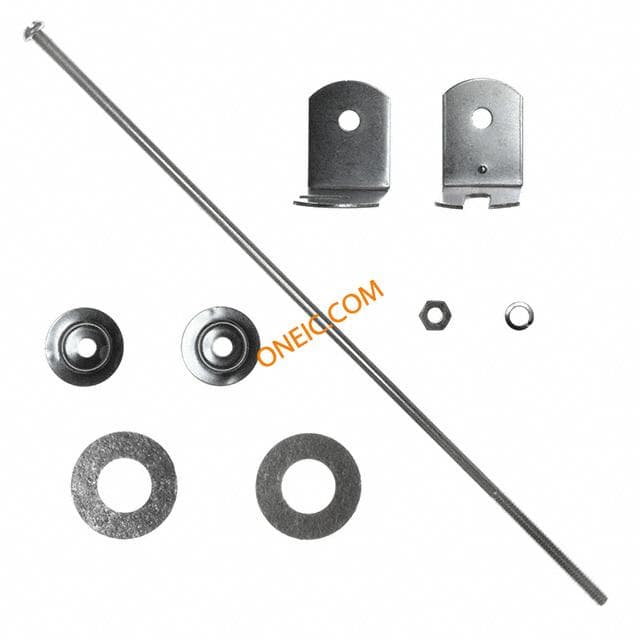

6110-10 1-2E
Ohmite
Resistor Hardware Mounting BraCket 225W MOUNTING HDWR BRACKET SLOTTED Hardware; Thru-Bolts and Mounting Brackets Resistor Mounting Hardware Bracket Slotted MOUNTING BRACKET, 200/210/270 RES Hardware, Thru-Bolts and Mounting Brackets
18-10
Ohmite
Resistor Hardware RES MOUNTING BRACKET MTG.BRACKETS D77182 PACK OF 10
18-100
Ohmite
Resistor Hardware RES MOUNTING BKT BRACKET MOUNTING FOR 225W RES
7PA200E
Ohmite
Resistor Hardware THRU-BOLT HARDWARE 225W MOUNTING HDWR THRU BOLT 225WATT Kit; Resistor; Mounting; Thru-Bolt; 11.5in long Thru-Bolts And Mounting Brackets THRU-BOLT, 200/210/270 RESISTOR Kit, Resistor, Mounting, Thru-Bolt; 11.5In Long
18BE-10
Ohmite
Resistor Hardware RES MOUNTING BKT MOUNTING BRACKETS PACK OF 10
6017E
Ohmite
Resistor Hardware MICA WASHER WASHER, MICA D85804 BAG OF 100 Washer; Mica; Insulating Washers Insulating 0.75in 1.5in WASHER Washer, Mica, Insulating
6003E
Ohmite
Resistor Hardware METAL WASHER WASHER, CNTR D85560 BAG OF 100 CENTERING WASHER, 200/210/270 RES Mounting; 175, 225 W; 0.25 In.; 1.125 In. (Outer), 0.250 In. (Inner)
18S-10
Ohmite
Resistor Hardware RES MOUNTING BKT MOUNTING BRACKETS PACK OF 10
6016E
Ohmite
Resistor Hardware MICA WASHER WASHER, MICA D85843 BAG OF 100

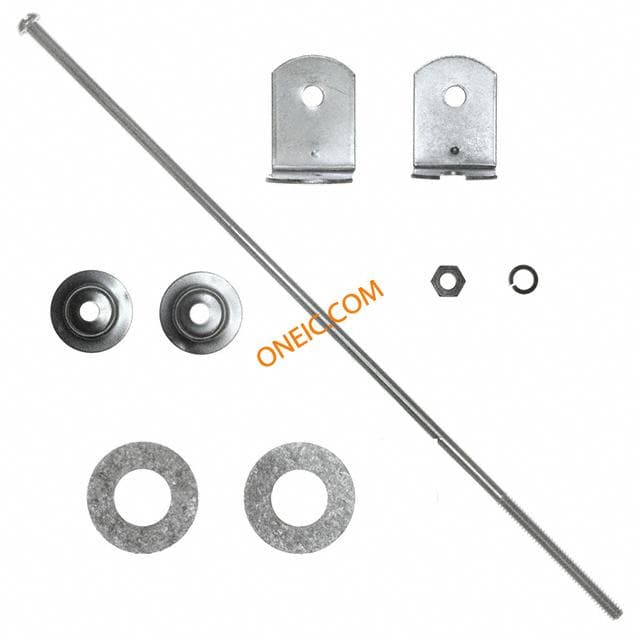

6110-10 1-2
