L175J40K
| Manufacturer | |
| Description | Wirewound Resistors - Chassis Mount 175watt 40K 5% RES CHAS MNT 40K OHM 5% 175W Wirewound Resistors 175watt 40K 5% |
| Category |
Business
| Product | Power Resistors Wirewound Vitreous Enamel | Lead Time | 56 Days |
| Subcategory | Resistor Fixed Single-Other Mounting | Product Category | Wirewound Resistors |
| Standard Package | 1 | ||
Compliance
| RoHS | Contains lead / RoHS non-compliant | ||
Electrical
| Tolerance | ±5% | Resistance | 40 kOhms |
| Power (Watts) | 175W | Power - Rated | 175 W |
| Voltage Rating | 3.595 kV | Resistance (Ohms) | 40k |
Mechanical
| Diameter | 28.6 mm | Packaging | Bulk |
| Lead Style | Solder Lugs | Package / Case | Radial, Tubular |
| Mounting Feature | Brackets (not included) | Size / Dimension | 1.126" Dia x 8.500" L (28.60mm x 215.90mm) |
| Termination Style | Solder Lug | Coating, Housing Type | Vitreous Enamel Coated |
Product Info
| Type | Vitreous Enamel Power Wirewound Resistors | Series | 270 |
| Features | Flame Retardant Coating | Composition | Wirewound |
| For Use With/Related Products | L175J40KE | ||
Environmental
| Operating Temperature | + 25 C to + 350 C | Temperature Coefficient | ±260ppm/°C |
Documents & Media
Similar Parts
18E-100
Ohmite
Resistor Hardware RES MOUNTING BKT BRACKET MOUNTING FOR 225W RES Clip; Mounting; Resistor MOUNTING BRACKET, 200/210/270 RES Clip, Mounting, Resistor, Standard Plated Steel
18-10
Ohmite
Resistor Hardware RES MOUNTING BRACKET MTG.BRACKETS D77182 PACK OF 10
18-100
Ohmite
Resistor Hardware RES MOUNTING BKT BRACKET MOUNTING FOR 225W RES
18BE-10
Ohmite
Resistor Hardware RES MOUNTING BKT MOUNTING BRACKETS PACK OF 10
6017E
Ohmite
Resistor Hardware MICA WASHER WASHER, MICA D85804 BAG OF 100 Washer; Mica; Insulating Washers Insulating 0.75in 1.5in WASHER Washer, Mica, Insulating
6003E
Ohmite
Resistor Hardware METAL WASHER WASHER, CNTR D85560 BAG OF 100 CENTERING WASHER, 200/210/270 RES Mounting; 175, 225 W; 0.25 In.; 1.125 In. (Outer), 0.250 In. (Inner)
18S-10
Ohmite
Resistor Hardware RES MOUNTING BKT MOUNTING BRACKETS PACK OF 10
6016E
Ohmite
Resistor Hardware MICA WASHER WASHER, MICA D85843 BAG OF 100

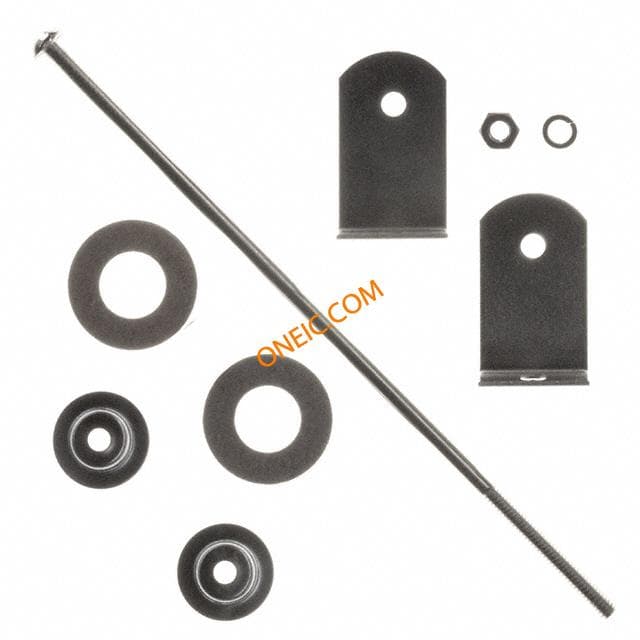

6126P-8 1-2
Ohmite
レジスタハードウェア Mounting Bracket MOUNTING HDWR BRACKET ELONGATED Resistor Hardware Mounting Bracket Thru-Bolts And Mounting Brackets

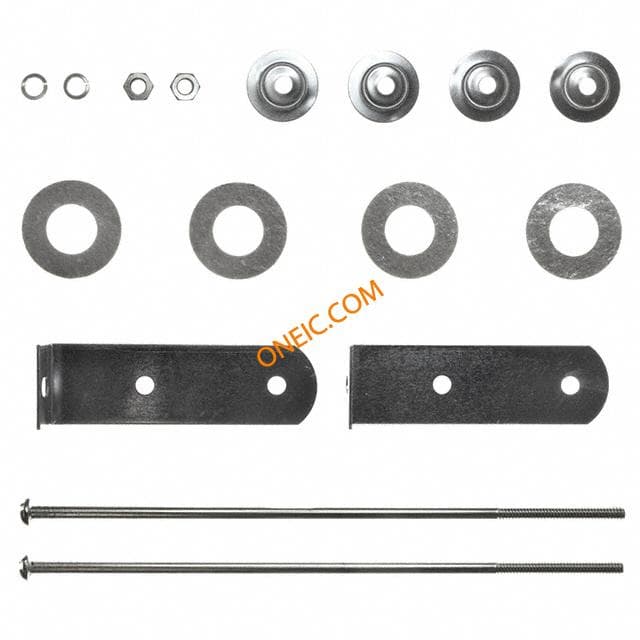

6127P-8 1-2
