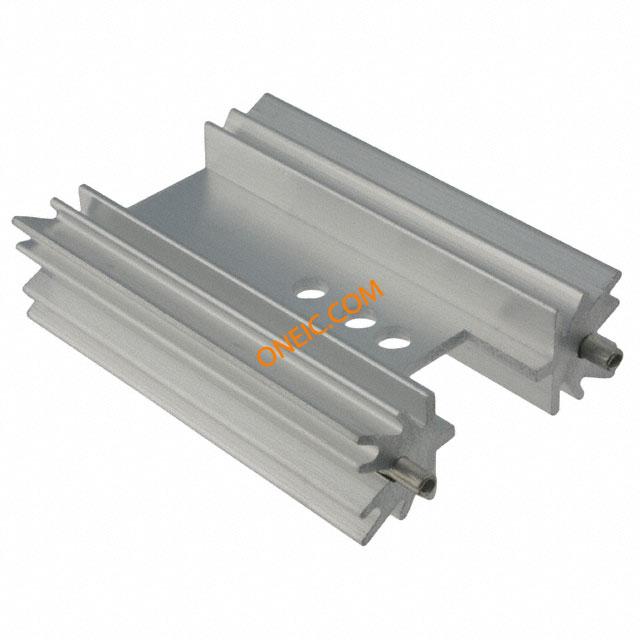

EV-T220-51E
| Manufacturer | |
| Description | Heat Sinks HEATSINK FOR TO-220 DEGREASED HEATSINK FOR TO-220 Heat Sink Passive TO-220 Vertical Solder Pin Aluminum 6063-T5 9.4°C/W HEATSINK, TO-220, 50.8MM, NO FINISH |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Heat Sinks | Lead Time | 98 Days |
| Other Names | EVT22051E | Subcategory | Heat Sink |
| Product Category | Heat Sinks | Standard Package | 10 |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 76041090 | ||
Mechanical
| Color | Black | Shape | Rectangular |
| Width | 12.7 mm | Height | 51 mm |
| Length | 35 mm | Weight | 0.024 |
| Material | Aluminum | Packaging | Bulk |
| Fin Height | Omnidirectional Pin | Mounting Style | Through Hole |
| Package Cooled | TO-220 | Width (Inches) | :0.5" |
| Height (Inches) | :2" | Material Finish | Degreased |
| Width - Overall | :12.7mm | Length - Overall | :1.378" |
| Attachment Method | Bolt On and PC Pin | Heat Sink Material | Aluminum |
| Height - Seated (Max) | 0.500" (12.70mm) | Shell Size - Insert (Convert From) | :50.8mm |
Product Info
| Type | Board Level, Vertical | Application | TO-220 |
Environmental
| Heat Protection | :Aluminium | Thermal Resistance | 9.4 C/W |
| Thermal Resistance @ Natural | 9.4°C/W | Power Dissipation @ Temperature Rise | 5W @ 40°C |
| Thermal Resistance @ Forced Air Flow | 4°C/W @ 600 LFM | ||
Documents & Media
Similar Parts
120-5
Wakefield
Chemicals SILICON GREASE 5oz. SILICON GREASE 5 OZ TUBE Thrml Mgmt Access Thermal Grease Opaque White 56°C/W 0.735W/m.K 5X10e14Ohm.cm Tube HEAT SINK, COMPOUND, 0.14KG, TUBE ThermalGrease;Tube5oz.;White;SiliconeOilBased;120Series 120 Series 5 oz Tube Silicone Oil Based Thermal Joint Compound
$125.8823
Details

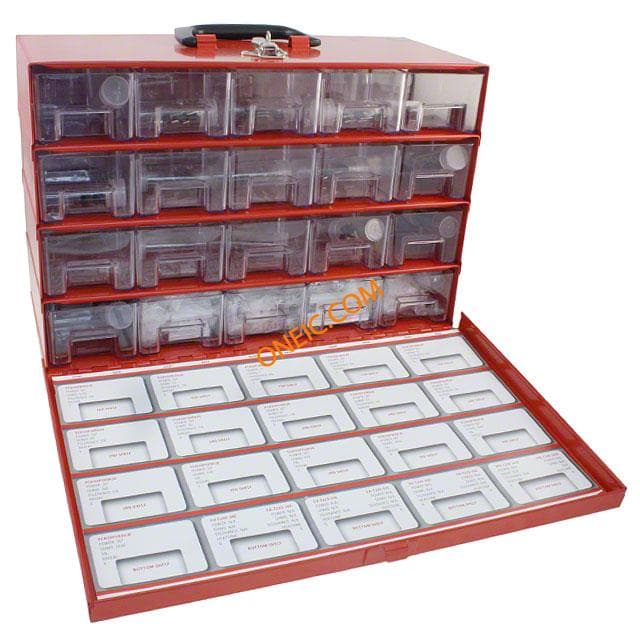

CAB-TCHHS
