D25K15RE
| Manufacturer | |
| Description | Wirewound Resistors - Chassis Mount 25watt 15ohm 10% RESISTOR POWER ADJ 15 OHM 25W Wirewound Resistors 25watt 15ohm 10% Res Wirewound 15 Ohm 10% 25W ±260ppm/°C Ceramic RDL Lug Bolt-On RESISTOR WIREWOUND, 15 OHM, 25W, 10% |
| Category |
Business
| Product | Power Resistors Wirewound Vitreous Enamel | Tradename | Dividohm |
| Product Category | Wirewound Resistors | Standard Package | 1 |
Compliance
| RoHS | RoHS Compliant | Tariff No | 85331000 |
Electrical
| Tolerance | ±10% | Resistance | 15 Ohms |
| Range deg/s | :OHMITE - D25 Series | Power (Watts) | 25W |
| Power - Rated | 25 W | Voltage Rating | 625 V |
| Resistance (Ohms) | 15 | Resistance Tolerance | :± 10% |
| Resistor - Base (R1) | :Wirewound | ||
Mechanical
| Length | 2.000" (50.80mm) | Weight | 0.027 |
| Diameter | 0.563" OD, 0.313" ID (14.30mm x 7.94mm) | Packaging | Bulk |
| Termination | Solder Lug | Mounting Type | Chassis Mount |
| Package / Case | Cylinder, Tube | Termination Style | Solder Lug |
Product Info
| Type | Vitreous Enamel Adjustable Power | Series | 210 |
| Adjustment Type | Slide | ||
Environmental
| Operating Temperature | + 25 C to + 350 C | Temperature Coefficient | 260 PPM / C |
Documents & Media
Similar Parts
9S-10
Ohmite
Resistor Hardware RES MOUNTING BRACKET MOUNTING BRACKET 25/50/75W
7PA25E
Ohmite
Resistor Hardware 2.75" #10 THRU-BOLT Resistor Hardware 2.75' #10 THRU-BOLT MOUNTING HDWE THRU BOLT 2.75" Kit; Resistor; Mounting; Thru-Bolt Thru-Bolts With Centering Mica Insulating Washers THRU-BOLT, 200/210/270 RESISTOR Kit, Resistor, Mounting, Thru-Bolt
2121E
Ohmite
Resistor Hardware 0.563" ADJUST LUG Resistor Hardware 0.563' ADJUST LUG ADJUSTABLE LUG FOR DIVIDOHM Lug; Screwdriver; 0.563 in. (Core) Resistor Mounting Hardware Adjustable Lugs LUG FOR ADJUSTABLE RESISTOR Lug; Screwdriver; 0.563 In. (Core)
6101-2
Ohmite
Resistor Hardware MOUNTING BRACKET MOUNTING HDWR BRACKET SLOTTED Resistor Mounting Hardware MOUNTINGHARDWARE
6120K-4
Ohmite
Resistor Hardware Mounting Bracket MOUNTING HARDWARE Bracket; Elongated; 2 1/4 in.

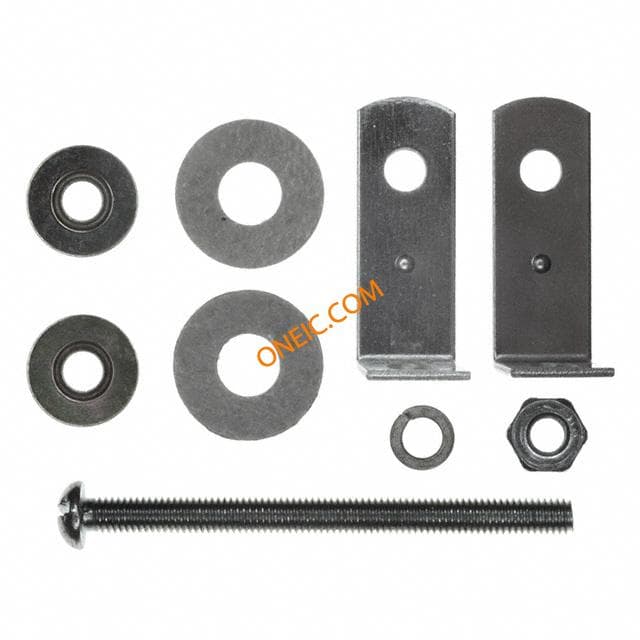

6120K-2
