D100K1K0E

Manufacturer	Ohmite Manufacturing Company
Description	Wirewound Resistors - Chassis Mount 100Watt 1K ohm ADJ Tubular Ceramic RESISTOR POWER ADJ 1K OHM 100W Resistor; Adjustable; Vitreous; Lug; 100 Watt; 10%; 1K Wirewound Resistors 100Watt 1K ohm ADJ Tubular Ceramic Res Wirewound 1K Ohm 10% 100W ±260ppm/°C Ceramic RDL Lug Bolt-On RESISTOR, WIREWOUND, 1KOHM, 100W, 10% Resistor; Wirewound; Res 1 Kilohms; Pwr-Rtg 100 W; Tol 10%; Lug; Adjustable Tubular
Category	Integrated CircuitsEmbedded MicrocontrollersApplication Processors

对参数有疑问？问 AI 助手

Business

Product	Power Resistors Wirewound Vitreous Enamel	Tradename	Dividohm
Product Category	Wirewound Resistors	Standard Package	1

Compliance

RoHS

Compliant

Tariff No

85331000

Electrical

Tolerance	±10%	Resistance	1 kOhms
Range deg/s	:OHMITE - D100 Series	Power (Watts)	100W
Power - Rated	100 W	Voltage Rating	2.845 kV
Resistance (Ohms)	1k	Power - Peak Pulse	100 W
Resistance Tolerance	:± 10%	Resistor - Base (R1)	:Wirewound

Mechanical

Length	6.500" (165.10mm)	Weight	0.091
Diameter	0.752" OD, 0.500" ID (19.10mm x 12.70mm)	Packaging	Bulk
Termination	Solder Lug	Mounting Type	Chassis Mount
Package / Case	Cylinder, Tube	Package Cooled	Adjustable Tubular
Material - Core	Wirewound	Termination Style	Solder Lug

Product Info

Type	Vitreous Enamel Adjustable Power	Series	210
Adjustment Type	Slide

Environmental

Operating Temperature

+ 25 C to + 350 C

Temperature Coefficient

260 PPM / C

Documents & Media

PDF Document

210 Series

PDF Document

res_210-220317.pdf

Similar Parts

12S-10

Ohmite

Resistor Hardware RES MOUNTING BKT MOUNTING BRACKETS PACK OF 10

$8.2280

Details

2125E

Ohmite

Resistor Hardware ADJUSTABLE LUG ADJUSTABLE LUG FOR DIVIDOHM Kit; Mounting; 0.313 in. Core Dia. Electromechanical Switch Power Tap Switch 20A LUG FOR ADJUSTABLE RESISTOR Adjustable Lug; 0.75 In. Core Dia.; For 210 Series

$28.2411

Details

12BE-10

Ohmite

Resistor Hardware RES MOUNTING BKT MOUNTING BRACKETS PACK OF 10

$7.9560

Details

12B-10

Ohmite

Resistor Hardware RES MOUNTING BKT MOUNTING BRACKETS PACK OF 10

$129.5400

Details

7PA100

Ohmite

Resistor Hardware 7.313" #10 THRU-BOLT MOUNTING HDWR THRU BOLT 100WATT Resistor Hardware 7.313' #10 THRU-BOLT Thru-Bolts And Mounting Brackets

$43.9008

Details

2127

Ohmite

Resistor Hardware Adjust Lug for 210 Silver Screw ADJUSTABLE LUG FOR DIVIDOHM Electromechanical Switch Power Tap Switch 20A

$23.4709

Details

12-100

Ohmite

Resistor Hardware RES MOUNTING BKT BRACKET MOUNTING FOR 100W RES

$4.7600

Details

7PA100E

Ohmite

Resistor Hardware 7.313" #10 THRU-BOLT MOUNTING HDWE THRU BOLT 7.313 Kit; Resistor; Thru Bolt Mounting Resistor Hardware 7.313' #10 THRU-BOLT THRU-BOLT, 200/210/270 RESISTOR Kit, Resistor, Thru Bolt Mounting

$48.3564

Details

12SE-10

Ohmite

Resistor Hardware RES MOUNTING BKT MOUNTING BRACKETS PACK OF 10 MOUNTING BRACKET, 200/210/270 RES

$7.8200

Details

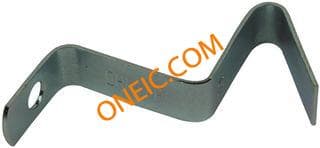

12E-100

Ohmite

Resistor Hardware RES MOUNTING BKT BRACKET MOUNTING FOR 100W RES Resistor; Mounting Clip MOUNTING BRACKET, 210/270 RESISTOR Hardware, Mounting Clip, Resistor, Standard Plated Steel

$4.0474

Details

12SE-100

Ohmite

Resistor Hardware RES MOUNTING BKT MOUNTING BRACKET PACK OF 100 Resistor; Mounting Clip; Hardware, Mounting Bracket, For 100 WattResistors , Spring Steel

$23.6001

Details

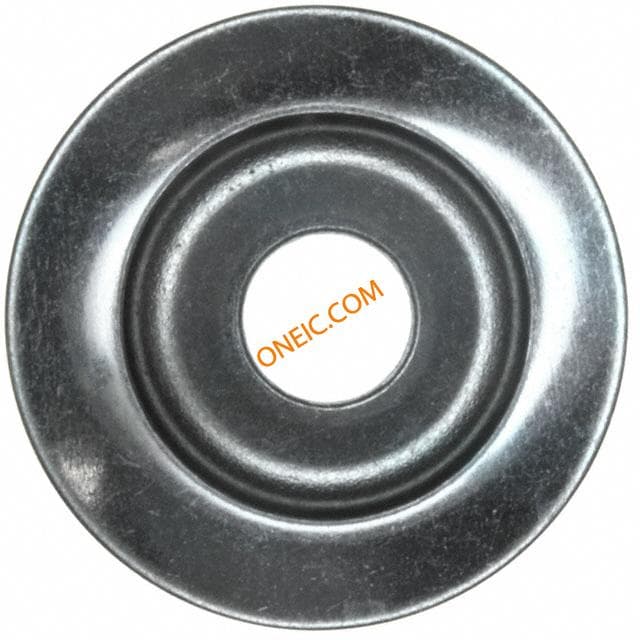

6001E
