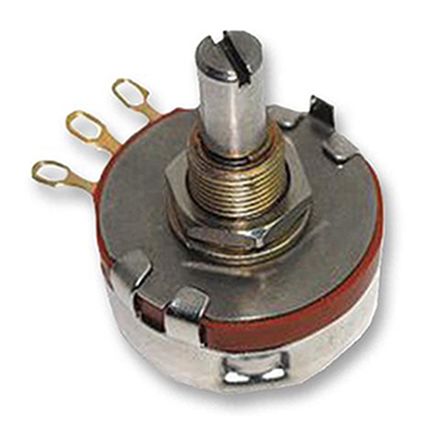

CU5021E
| Manufacturer | |
| Description | Potentiometers 2W 10% POT 5K OHM 29.4MM RD 2W CARB Res POT 5K Ohm 2W 1(Elec)/1(Mech)Turn 6.35mm (66.68 X 29.4mm) Solder Lug Panel Mount POTENTIOMETER, 5KOHM, 2W Potentiometer; 5 Kilohm; 2W Ohmite CU 系列 5kΩ ±10% 电位器 , 2W, 6.35 mm 直径轴, 面板安装 |
| Category |
Business
| Product | Potentiometer | Product Category | Potentiometers |
| Standard Package | 2 | Factory Pack Quantity | 1 |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85334010 | ||
Electrical
| Tolerance | 10 % | Resistance | 5 kOhms |
| Element Type | Composition | Power (Watts) | 2W |
| Power - Rated | 2 W | Voltage Rating | 500 V |
| Resistance (Ohms) | 5k | Resistance Tolerance | :- |
| DC Resistance (DCR) (Max) | :5kohm | ||
Mechanical
| Taper | Linear | Weight | 0.032 |
| Rotation | 312° | Packaging | Bulk |
| Size - Body | Round - 1.157" Dia x 0.626" L (29.40mm x 15.90mm) | Shaft Detail | Slotted |
| Actuator Type | Round Shaft | Mounting Type | Panel Mount |
| Shaft Diameter | 6.35 mm | Actuator Length | 2.000" (50.80mm) |
| Actuator Diameter | 0.250" (6.35mm) | Termination Style | Solder Lug |
| Resistive Material | Carbon | Length - Shaft and Bearing | 50.8 mm |
Product Info
| Type | Potentiometer | Series | :CU |
| Adjustment Type | Side Adjustment | Number of Gangs | :1 |
| Number of Turns | 1 | ||
Environmental
| Operating Temperature | - 55 C to + 125 C | ||
