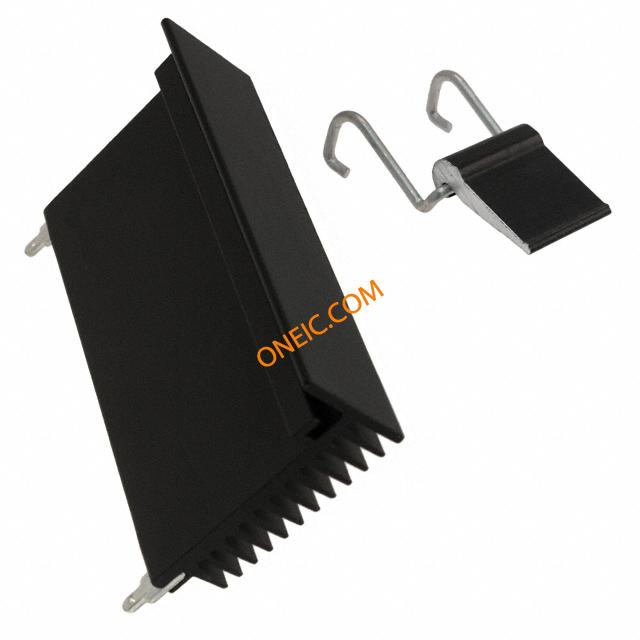

C247-075-3AE
| Manufacturer | |
| Description | Heat Sinks HEATSINK FOR TO-247 3 CLIPS, RADIAL HEATSINK FOR TO-247 WITH 3 CLIPS Heat Sink Passive TO-247 Clip Aluminum Alloy 6063-T5 Black Anodized HEATSINK, TO-247, 3 CLIPS, BLACK Heatsink For TO-247 with 3 Clips; Radial |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Heat Sinks | Lead Time | 98 Days |
| Other Names | C2470753AE | Subcategory | Not Specified |
| Product Category | Heat Sinks | Standard Package | 5 |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 76041090 | ||
Mechanical
| Shape | Rectangular | Width | 18 mm |
| Finish | Black Anodized | Height | 38 mm |
| Length | 75 mm | Weight | 0.045 |
| Material | Aluminum | Packaging | Bulk |
| Fin Height | Straight | Termination | Radial |
| Surface Type | 34 In.2 | Mounting Style | Through Hole |
| Package Cooled | TO-247 | Width (Inches) | :0.806" |
| Height (Inches) | :1.5" | Material - Core | Thick Film |
| Material Finish | Black Anodized | Width - Overall | :20.47mm |
| Length - Overall | :2.952" | Primary Material | TO-247 |
| Size / Dimension | 75 L x 38 W x 20.47 H in. | Attachment Method | 3 Clips and PC Pin |
| Heat Sink Material | Aluminum Alloy | Length - Lead Wire | 75 mm |
| Height - Seated (Max) | 0.710" (18.03mm) | Shell Size - Insert (Convert From) | :38mm |
Product Info
| Type | Board Level, Vertical | Features | Heat Sink |
| Application | TO-247 | Application Specifics | Thermal Management |
Environmental
| Heat Protection | :Aluminium | Thermal Resistance | :- |
| Power Dissipation @ Temperature Rise | 2.5W @ 20°C | Thermal Resistance @ Forced Air Flow | 2.0°C/W @ 300 LFM |
