OM10045

Manufacturer	NXP Semiconductors N.V.
Description	Development Boards & Kits - ARM MCB213x Evaluation Board 60-MHZ, 32-BIT MICROCONTROLLERS WITH ARM7TDMI-S CORES BOARD EVAL FOR LPC213X ARM MCU
Category	Embedded Systems and Development ToolsEmbedded MCU and DSP Evaluation BoardsMCU Evaluation Boards

对参数有疑问？问 AI 助手

Business

Product	Development Boards	Other Names	568-2095
Product Category	Development Boards & Kits - ARM	Standard Package	1

Compliance

RoHS

Not applicable / Not applicable

EU RoHS

Compliant

Electrical

Core Type	ARM7TDMI-S	Interface	I2C, SPI, SSP, UART
Voltage - Supply	3.3 V

Mechanical

Number of Cores/Bus Width

32 bit

Product Info

Type	MCU	Contents	Development Board and Software
Tool Type Feature	LPC2138	For Use With/Related Products	LPC2130 ARM Family

Environmental

Mechanical Life

Verify Status with Factory: Lifecycle information is unclear. Obtain a quote to verify the availability of this part number from the manufacturer.

Documents & Media

Online Document

OM10045.html#overview

Similar Parts

LPC2132FBD64/01,15

nxp semiconductors

Microcontroller ARM Microcontrollers - MCU ARM7 64KF/16KR/ADC MCU 16-bit/32-bit LPC2000 ARM7TDMI-S RISC 64KB Flash 3.3V 64-Pin LQFP Tray IC ARM7 MCU FLASH 64K 64-LQFP LPC2132FBD64/01,15, 16, 32 bit Microcontroller ARM7TDMI-S 60MHz 64kb Flash, 16kb RAM, I2C SPI 64-Pin LQFP MCU 16-Bit/32-Bit LPC2000 ARM7TDMI-S RISC 64KB Flash 3.3V 64-Pin LQFP Tray NXP LPC21 系列 16/32 bit ARM7TDMI-S MCU, 60MHz, 64 kB ROM 闪存, 16 kB RAM, 64针 LQFP封装

$79.1806

Details

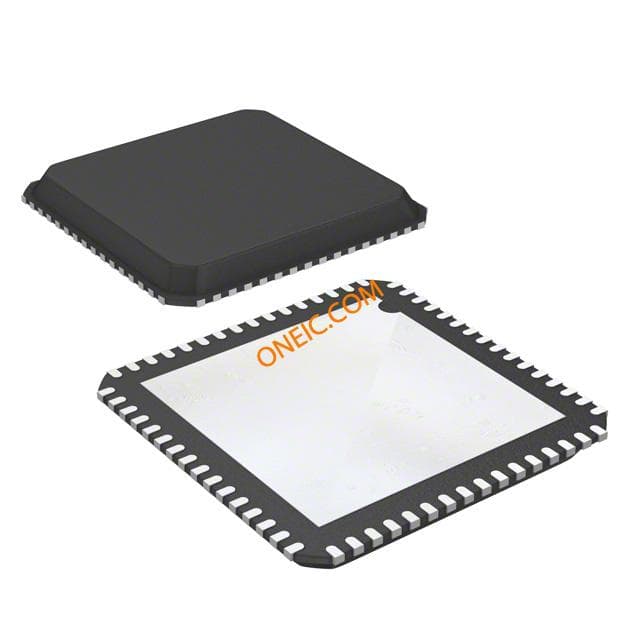

LPC2132FHN64/01,55

nxp semiconductors

MCU 16-bit/32-bit LPC2000 ARM7TDMI-S RISC 64KB Flash 3.3V 64-Pin HVQFN EP Tray IC ARM7 MCU FLASH 64K 64-HVQFN LPC2132FHN64/01,55, 16, 32 bit Microcontroller ARM7TDMI-S 60MHz 64kb Flash, 16kb RAM, I2C SPI 64-Pin HVQFN ARM Microcontrollers - MCU ARM7 64KF/16KR/ADC MCU 32-Bit RISC 64KB Flash 3.3V 64-Pin HVQFN EP Tray NXP LPC21 系列 16/32 bit ARM7TDMI-S MCU, 60MHz, 64 kB ROM 闪存, 16 kB RAM, 64针 HVQFN封装

Details

LPC2134FBD64/01,15

nxp semiconductors

MCU 16-bit/32-bit LPC2000 ARM7TDMI-S RISC 128KB Flash 3.3V 64-Pin LQFP Tray IC ARM7 MCU FLASH 128K 64-LQFP LPC2134FBD64/01,15, 16, 32 bit Microcontroller ARM7TDMI-S 60MHz 128kb Flash, 16kb RAM, I2C SPI 64-Pin LQFP ARM Microcontrollers - MCU ARM7 128KF/16KR/ADC MCU 16-Bit/32-Bit LPC2000 ARM7TDMI-S RISC 128KB Flash 3.3V 64-Pin LQFP Tray NXP LPC21 系列 16/32 bit ARM7TDMI-S MCU, 60MHz, 128 kB ROM 闪存, 16 kB RAM, 64针 LQFP封装

$78.7950

Details

LPC2131FBD64/01,15

nxp semiconductors

MCU 16-bit/32-bit LPC2000 ARM7TDMI-S RISC 32KB Flash 3.3V 64-Pin LQFP Tray ARM Microcontrollers - MCU ARM7 256KF/8KR/ADC IC ARM7 MCU FLASH 32K 64-LQFP LPC2131FBD64/01,15, 16, 32 bit Microcontroller ARM7TDMI-S 60MHz 32kb Flash, 8kb RAM, I2C SPI 64-Pin LQFP MCU 16-Bit/32-Bit LPC2000 ARM7TDMI-S RISC 32KB Flash 3.3V 64-Pin LQFP Tray IC, 32BIT MCU, 60MHZ, LQFP-64 NXP LPC21 系列 16/32 bit ARM7TDMI-S MCU, 60MHz, 32 kB ROM 闪存, 8 kB RAM, 64针 LQFP封装

$53.3052

Details

LPC2138FBD64/01,15

nxp semiconductors

MCU 16-bit/32-bit LPC2000 ARM7TDMI-S RISC 512KB Flash 3.3V 64-Pin LQFP Tray ARM Microcontrollers - MCU ARM7 512KF/32KR/ADC IC ARM7 MCU FLASH 512K 64-LQFP LPC2138FBD64/01,15, 16, 32 bit Microcontroller ARM7TDMI-S 60MHz 512kb Flash, 32kb RAM, I2C SPI 64-Pin LQFP MCU 16-Bit/32-Bit LPC2000 ARM7TDMI-S RISC 512KB Flash 3.3V 64-Pin LQFP Tray IC, 32BIT MCU, 60MHZ, LQFP-64 NXP LPC21 系列 16/32 bit ARM7TDMI-S MCU, 60MHz, 512 kB ROM 闪存, 32 kB RAM, 64针 LQFP封装

$105.5775

Details

LPC2138FHN64/01,55

nxp semiconductors

MCU 16-bit/32-bit LPC2000 ARM7TDMI-S RISC 512KB Flash 3.3V 64-Pin HVQFN EP Tray ARM Microcontrollers - MCU ARM7 512KF32KR/ADC IC ARM7 MCU FLASH 512K 64-HVQFN LPC2138FHN64/01,55, 16, 32 bit Microcontroller ARM7TDMI-S 60MHz 512kb Flash, 32kb RAM, I2C SPI 64-Pin HVQFN MCU 32-Bit RISC 512KB Flash 3.3V 64-Pin HVQFN EP Tray

Details

LPC2136FBD64/01,15

nxp semiconductors

MCU 16-bit/32-bit LPC2000 ARM7TDMI-S RISC 256KB Flash 3.3V 64-Pin LQFP Tray IC ARM7 MCU FLASH 256K 64-LQFP LPC2136FBD64/01,15, 16, 32 bit Microcontroller ARM7TDMI-S 60MHz 256kb Flash, 32kb RAM, I2C SPI 64-Pin LQFP ARM Microcontrollers - MCU ARM7 256KF/32KR/ADC MCU 16-Bit/32-Bit LPC2000 ARM7TDMI-S RISC 256KB Flash 3.3V 64-Pin LQFP Tray NXP LPC21 系列 16/32 bit ARM7TDMI-S MCU, 60MHz, 256 kB ROM 闪存, 32 kB RAM, 64针 LQFP封装

$94.4350

Details
