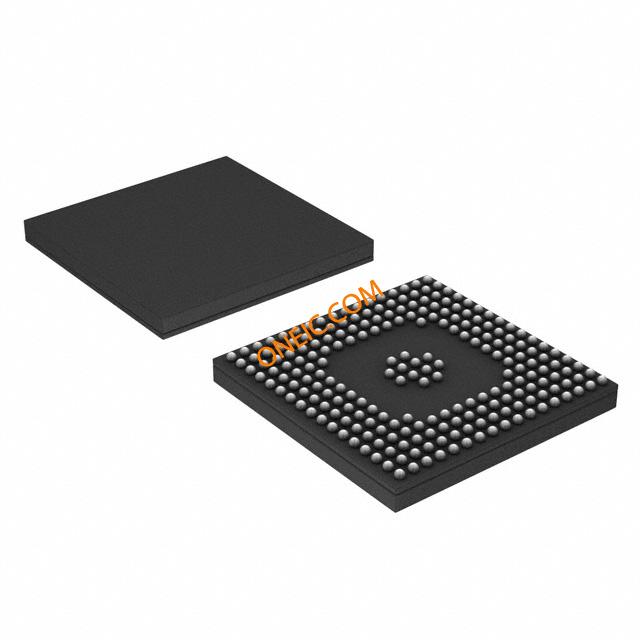

LH79524N0F100A1,55
| Manufacturer | |
| Description | LCD,USB,ETH'NET,MMU,ADC,BGA208 LCD,USB,ETH'NET,MMU,LFBGA208 SOC LH7952x ARM720T 208-Pin LFBGA IC ARM7 BLUESTREAK MCU 208LFBGA ARM Microcontrollers - MCU LCD USB ETH'NET MMU SOC Microcontroller 1.9V/3.6V 208-Pin LFBGA MCU, ARM7, BLUESTREAK, 208LFBGA |
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | LH79524N0F100A1 | Product Category | ARM Microcontrollers - MCU |
| Standard Package | 595 | Factory Pack Quantity | 595 |
| Standard Package Name | BGA | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423190 |
| Rad Hardened | No | ||
Electrical
| Speed | 76.2MHz | RAM Size | 16KB |
| Core Size | 32-Bit | Core Type | ARM720T |
| Interface | I2C/I2S/UART/USB | Clock Rate | 76.205 |
| Memory Size | :16KB | Number of I/O | 108 |
| Voltage Rating | 1.7|3 | Clock Frequency | :76.2MHz |
| Data Converters | A/D 10x10b | Number of DAC's | :3 |
| Oscillator Type | External | Voltage - Supply | 1.8 V, 3.3 V |
| Program Memory Type | ROMLess | Voltage - Supply (Min) | 1.7/3 V |
| Voltage - Supply (Vcc/Vdd) | 1.7 V ~ 3.6 V | Common Mode Transient Immunity (Min) | Industrial |
Mechanical
| Width | 14 | Length | 14 mm |
| Weight | 0.688 | Packaging | Tray |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | :208 | Package / Case | 208-LFBGA |
| Package Cooled | LFBGA | Material Finish | :MSL 3 - 168 hours |
| Length - Overall | 14 | Package Quantity | LFBGA |
| Number of Positions | 208 | Shell Size - Insert | 1.35(Max) |
| Supplier Device Package | 208-LFBGA (14x14) | Number of Cores/Bus Width | 32 bit |
Product Info
| Type | System-On-Chip | Series | LH795 |
| DELETED | Compliant | On-Chip RAM | No |
| Peripherals | Brown-out Detect/Reset, DMA, I²S, LCD, POR, PWM, WDT | Applications | Embedded Control |
| Architecture | :ARM7TDMI | Connectivity | EBI/EMI, Ethernet, I²C, IrDA, Microwire, SPI, SSI, SSP, UART/USART, USB |
| Programmable | No | Core Processor | ARM7® |
| Number of Timers | 3 | Controller Series | :ARM7 |
| RF Family/Standard | LH7952x | DigiKey Programmable | No |
| Application Specifics | Embedded Control | Printed Circuit Board | 208 |
Environmental
| Operating Temperature | -40°C ~ 85°C | Operating Temperature - Junction | 85C |
Documents & Media
Similar Parts
ABLS-14.7456MHZ-B2-T
abracon
Crystal 14.7456MHz 18pF 2-Pin HC-49/US T/R CRYSTAL 14.7456MHZ 18PF SMD Crystals +/-20ppm 14.7456MHZ FUNDAMENTAL Crystal 14.7456MHz ?20ppm (Tol) ?50ppm (Stability) 18pF FUND 50Ohm 2-Pin HC-49/US SMD T/R CRYSTAL, 14.745M, 18PF CL, HC49/4HSMX
$0.5780
Details
SDK-LH79524-10-3216R
logic
LH79524 ZOOM DEVELOPMENT KIT KIT DEVELOPMENT ZOOM SDK LH79524
$2984.5200
Details

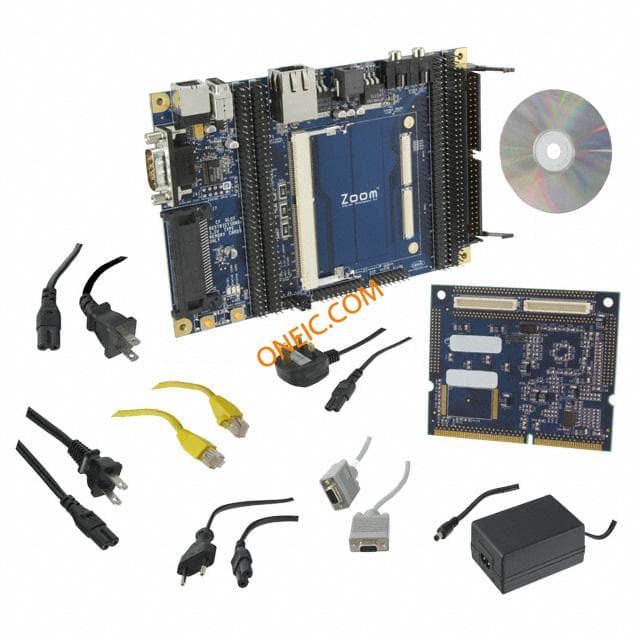

OM11001
nxp semiconductors
LOGIC PD LH79524 EVAL BOARD (NO LCD SCREEN) NEW Development Boards & Kits - ARM Logic PD LH79524 Eval Board BOARD EVAL FOR LH79524
$3262.3000
Details

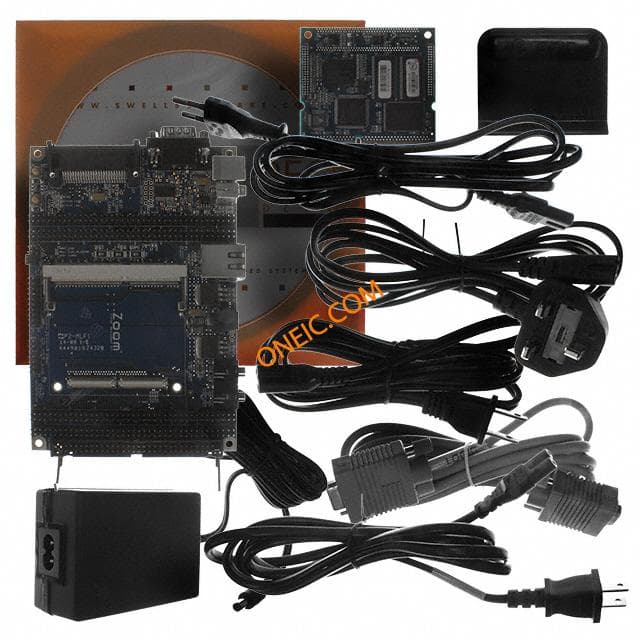

SDK-LH79524-10-3216R-A
