NTE5324
| Manufacturer | |
| Description | Rectifier; Bridge; Silicon Bridge Rectifier; 400 V; 400 A; 25; Thru Hole Mount Diode Rectifier Bridge Single 400V 25A 4-Pin BRIDGE RECTIFIER, 1PH, 25A 400V THD BRIDGE RECTIFIER - FULL WAVE SINGLE PHASE 400V 25A Bridge rectifier 400 V 25 A QUAD-28.6, NTE5324, NTE |
| Category |
Compliance
| RoHS | RoHS Compliant Part | Tariff No | 85411000 |
Electrical
| Current - Surge | 400 A | Transistor Type | Silicon Bridge Rectifier |
| Current - Output | 1 mA | Voltage - Supply | :1.1V |
| LED Forward Current | 400 A | Voltage - Peak Reverse (Max) | 400 V |
| Current - Average Rectified (Io) | 25 A | Voltage - Reverse Standoff (Typ) | :400V |
| Current - LED Trigger (Ift) (Max) | :25A | ||
Mechanical
| Weight | 0.027 | Mounting Type | Thru Hole Mount |
| Number of Pins | :4 | Package / Case | :GBPC |
| Material Finish | :- | Primary Material | Bridge Rectifier |
| Connector - Cable | :GBPC | Number of Positions | :Single |
Product Info
| Configuration | Single-Phase | ||
Environmental
| Operating Temperature | -55 to 125 °C | Operating Temperature - Junction | 125 °C |
Similar Parts

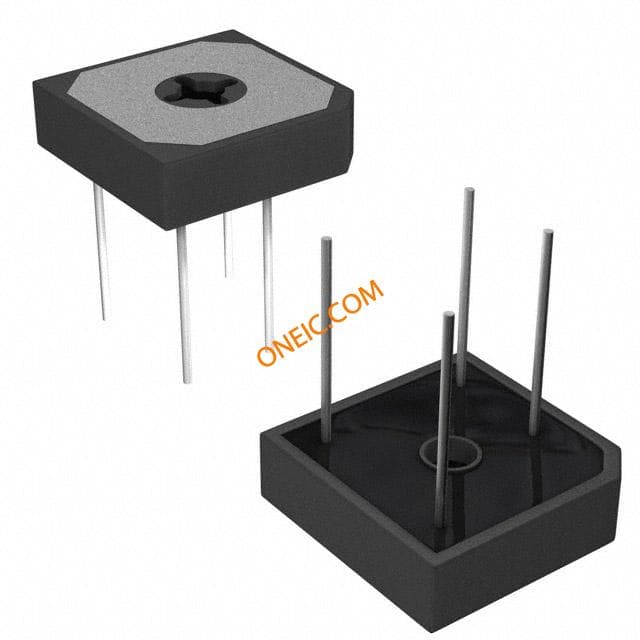

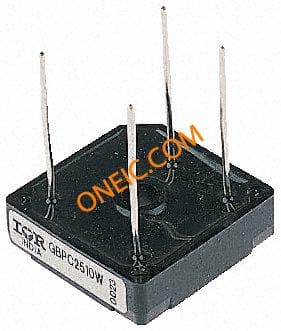

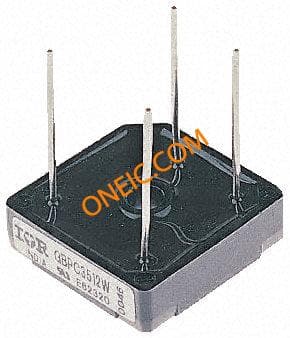

GBPC2504W
diodes, inc
Diode Rectifier Bridge Single 400V 25A 4-Pin Case GBPC-W Tray BRIDGE SQUARE 25A 400V ROHS 100PCS RECT BRIDGE GPP 400V 25A GBPCW HIGH CURRENT SILICON BRIDGE RECTIFIER(VOLTAGE - 50 to 1000 Volts CURRENT - 25 Amperes)
GBPC2504W
Vishay Intertechnology, Inc.
Diode Rectifier Bridge Single 400V 25A 4-Pin Case GBPC-W GBPC2504W
GBPC2504W
Taiwan Semiconductor
Bridge Rectifiers 25 Amp 400 Volt GBPC2504W, Bridge Rectifier Single Phase, 25A 400V, 4-Pin GBPC W Diode Rectifier Bridge Single 400V 25A 4-Pin Case GBPC-W Bridge Rectifiers 25A 400V GLASS PASS WIRE
GBPC2504W
Lite-On
GBPC2504W, Bridge Rectifier Single Phase, 25A 400V, 4-Pin GBPC W
GBPC2504W
Avnet, Inc.
BRIDGE RECTIFIER, 25A, 400V
GBPC2504W
genesic-semi
400V 25A GBPC-W Single Phase Bridge Rectifier
GBPC2504W
NXP Semiconductors N.V.
GBPC2504W
onsemi
RECT BRIDGE GPP 25A 400V GBPC-W
