NTE3041
| Manufacturer | |
| Description | Optoisolator; NPN Transistor; 1.15 V (Typ.) @ 10 mA; 60 mA; 250 mW @ 25 degC; 6 Optocoupler DC-IN 1-CH Transistor With Base DC-OUT 6-Pin PDIP OPTOCOUPLER, TRANSISTOR, 7500VRMS OPTOISOLATOR WITH NPN TRANSISTOR OUTPUT6-PIN DIP VISO=7500 CTR=100% Optocoupler DIL-6, NTE3041, NTE |
| Category |
Compliance
| RoHS | RoHS Compliant Part | Tariff No | 85411000 |
Electrical
| Input Type | LED | Capacitance | 18 pF (Typ.) |
| Output Type | Transistor | Turn On Time | 7.5 μs (Typ.) @ 10 V, 2 mA, 100 Ohms |
| Power - Rated | 250 mW @ 25 °C | Voltage Rating | :30V |
| Output Isolation | :Phototransistor | Voltage - Supply | 30 V |
| Return Loss (Min) | :1.0% | Number of Channels | :1 |
| Voltage - Isolation | :7.5kV | Current - Input Bias (Max) | :10mA |
| Current - Average Rectified (Io) | 60 mA | DC Current Gain (hFE) (Min) @ Ic, Vce | :7.5 |
Mechanical
| Weight | 0.002 | Number of Pins | :6 |
| Optic Material | :DIP | Package Cooled | 6-Pin DIP |
Product Info
| Type | Analog | ||
Environmental
| Operating Temperature - Junction | +100 °C | ||
Similar Parts

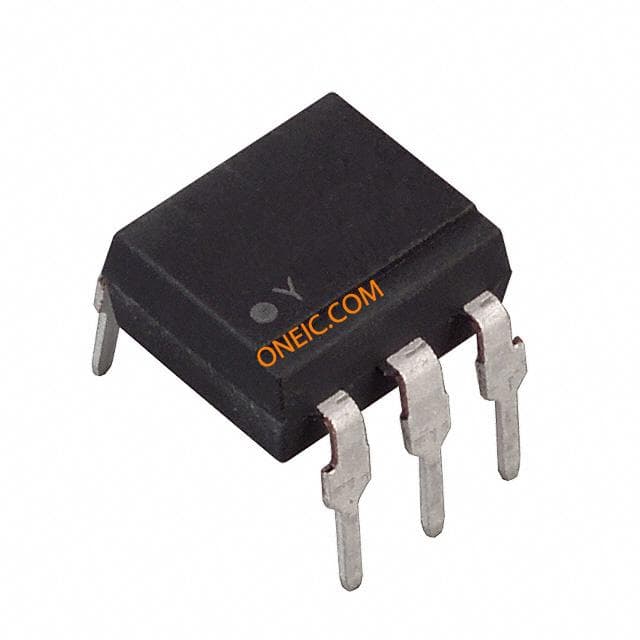

H11A2
