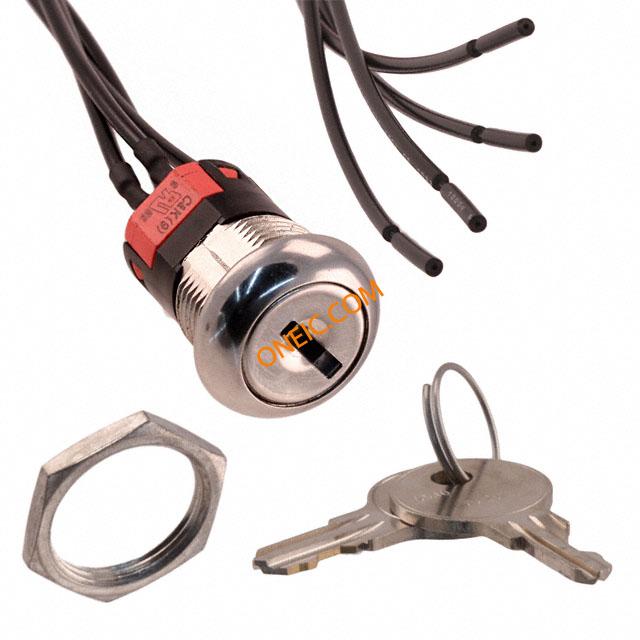

Y1417U2C2WCNQE
| Manufacturer | |
| Description | Switch Key Lock SP3T 90° Flat Key 4A 250VAC 28VDC Wire Lead Panel Mount Switchlocks SW KEYLOC SP3T 6"WIRES 4P 125V Keylock Switches SP 90 Flat Key 4A 250VAC 28VDC |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 100 | Lead Time | 84 Days |
| Unit Pack | 1 | Subcategory | Switch KeyLock |
| Product Category | Keylock Switches | Standard Package | Bulk |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Circuit | SP3T | Voltage Rating | 28 V |
| Current Rating (Max) | 4@125VAC 28VDC A | Voltage - Input (Min) | 250@(CSA/UL) V |
| Contact Rating @ Voltage | 4A @ 125VAC | ||
Mechanical
| Depth | 23.16 | Height | 29.16 |
| Contact Form | SP3T | Actuator Type | Flat Key |
| Mounting Type | Panel Mount | Terminal Type | Wire Lead |
| Angle of Throw | 90° | Contact Finish | Silver |
| Contact Material | Copper | Housing Material | Polyester, Glass Filled |
| Length - Overall | 23.16 | Material - Frame | Brass |
| Termination Style | Wire Leads | Number of Positions | 3 |
| Switch Actuation Level | SP3T | Material - Housing & Prism | N/A/(Glass/Polyester) |
Product Info
| Type | Tumbler Lock | Series | Y |
| Key Type | Flat Key | Industry Aliases | Y1417U2C2WCNQE |
| Other Specifications | 90 deg | Key Removable Positions | 1, 2 and 3 |
