NRF24LU1P-F32Q32-T
| Manufacturer | |
| Description | RF Transceiver 2.4GHz RF TRNSCVR W/ USB MCU/32K FLSH MEM RF Transceiver GFSK 3.27V/5V 32-Pin QFN EP Tray 2,4GHZ TRANSC.USB2.0,MCU IC TXRX 2.4GHZ 32K FLASH 32QFN |
| Category |
Business
| MOQ | 1 | Unit Pack | 490 |
| Other Names | 1490-1022 | Standard Package | 490 |
| Standard Package Name | QFN | ||
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Automotive | NO | Rad Hardened | No |
| Leadfree Defin | RoHS-conform | Security Features | NY/N |
Electrical
| Frequency | 2400MHz | Interface | SPI, UART |
| Modulation | GFSK | Memory Size | 32kB Flash, 2kB RAM |
| Sensitivity | -94dBm | Output Power | 0 dBm |
| Data Interface | PCB, Surface Mount | Power - Output | 0dBm |
| Voltage Rating | 3.05V|4V | Data Rate (Max) | 2 Mbps |
| Frequency - Max | 2525 | Frequency Range | 2.4 GHz |
| Current - Supply | 13.3 mA | Voltage - Supply | 4 V to 5.25 V |
| Current - Receiving | 13.3mA | Current - Transmitting | 11.1mA |
| Voltage - Supply (Min) | 3.5V|5.25V | ||
Mechanical
| Depth | 5 mm | Width | 5 |
| Height | 0.83 mm | Packaging | Tray |
| Lead Style | No Lead | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Package / Case | QFN-32 |
| Package Cooled | QFN EP | Length - Overall | 5 mm |
| Package Quantity | QFN EP | Antenna Connector | PCB, Surface Mount |
| Number of Positions | 32 | Shell Size - Insert | 0.83 |
Product Info
| Function | Transceive | Matchcode | NRF24LU1P-F32Q32-T |
| Applications | General Purpose | Standard Leadtime | 14 weeks |
| Printed Circuit Board | 32 | Modulation or Protocol | GFSK |
Environmental
| Mechanical Life | New At Mouser | Operating Temperature | + 80 C |
| Operating Temperature - Junction | 85C | ||
Documents & Media
Similar Parts
NRF6909
Nordic Semiconductor ASA
RF Modules NRFREADY R/C RACING REFERENCE DESIGN NRF READY R/C RACING REF.DESIGN NRFREADY R/C RACING REF DESIGN

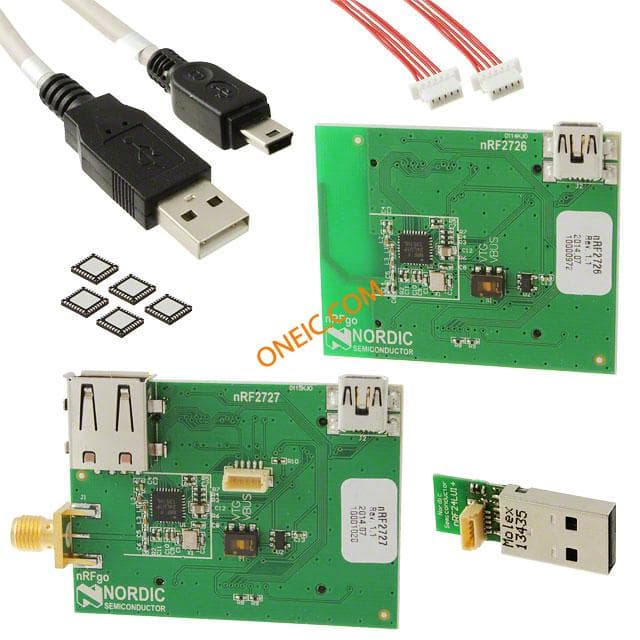

NRF24LU1P-FXXQ32-DK
