NRF24LU1P-F16Q32-R

Manufacturer	Nordic Semiconductor ASA
Description	RF Transceiver 2.4GHz RF TRNSCVR W/ USB MCU/16K FLSH MEM 2,4GHZ TRANSCEIVER WITH USB2.0 IC TXRX 2.4GHZ 16K FLASH 32QFN
Category	RF and Wireless SolutionsRF TransceiversRF Transceiver ICs

对参数有疑问？问 AI 助手

Business

MOQ	4000	Unit Pack	4000
Standard Package	4,000

Compliance

RoHS	RoHS Compliant	Automotive	NO
Leadfree Defin	RoHS-conform	Security Features	NY/N

Electrical

Frequency	2400MHz	Interface	SPI, UART
Memory Size	16kB Flash, 2kB RAM	Sensitivity	-94dBm
Output Power	0 dBm	Data Interface	PCB, Surface Mount
Power - Output	0dBm	Data Rate (Max)	2 Mbps
Frequency Range	2.4 GHz	Current - Supply	13.3 mA
Voltage - Supply	4 V to 5.25 V	Current - Receiving	13.3mA
Current - Transmitting	11.1mA

Mechanical

Weight	0.068g	Packaging	Reel
Mounting Style	SMD/SMT	Package / Case	QFN-32
Antenna Connector	PCB, Surface Mount

Product Info

Series	nRF24L	Function	Transceive
Matchcode	NRF24LU1P-F16Q32-R	Applications	General Purpose
Standard Leadtime	14 weeks	Modulation or Protocol	GFSK

Environmental

Operating Temperature

+ 80 C

Documents & Media

PDF Document

nRF24LU1P_Product_Spec_v1_1.pdf

PDF Document

NRF24LU1+ Specification

Similar Parts

NRF6909

Nordic Semiconductor ASA

RF Modules NRFREADY R/C RACING REFERENCE DESIGN NRF READY R/C RACING REF.DESIGN NRFREADY R/C RACING REF DESIGN

Details

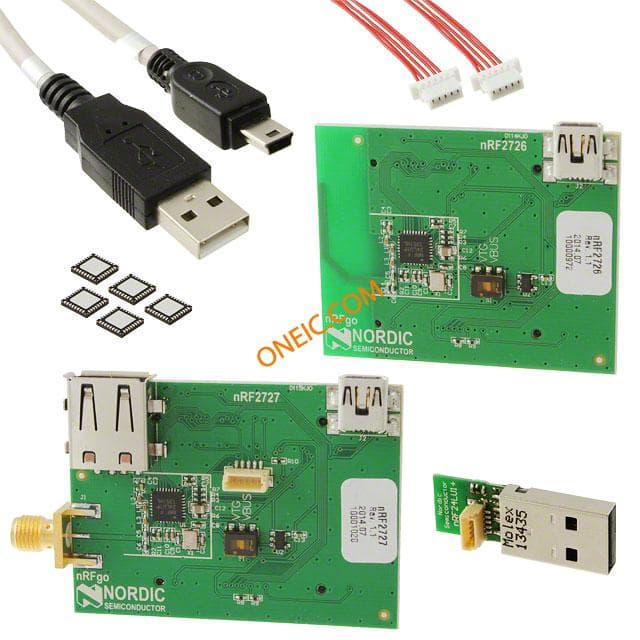

NRF24LU1P-FXXQ32-DK
