NRF24LE1-O17Q24-R7
| Manufacturer | |
| Description | RF Transceiver ULTR-LW POW WIRELS SOC SOL ULP WIRELESS ON-CHIP SOLUTION IC WIRELESS SOC SOLUTION 24QFN |
| Category |
Business
| MOQ | 1500 | Unit Pack | 1500 |
| Standard Package | 1,500 | ||
Compliance
| RoHS | RoHS Compliant | Automotive | NO |
| Leadfree Defin | RoHS-conform | Security Features | NY/N |
Electrical
| Frequency | 2400MHz | Interface | SPI, UART |
| Sensitivity | -94dBm | Output Power | 0 dBm |
| Data Interface | PCB, Surface Mount | Power - Output | 0dBm |
| Data Rate (Max) | 2 Mbps | Frequency Range | 2.4 GHz |
| Voltage - Supply | 1.9 V to 3.6 V | Current - Receiving | 13.3mA |
| Current - Transmitting | 11.1mA | ||
Mechanical
| Weight | 0.037g | Packaging | Reel |
| Mounting Style | SMD/SMT | Package / Case | QFN-24 |
| Antenna Connector | PCB, Surface Mount | ||
Product Info
| Series | nRF24L | Function | TRANSCEIVE |
| Matchcode | NRF24LE1-O17Q24-R7 | Applications | General Purpose |
| Standard Leadtime | 14 weeks | Modulation or Protocol | GFSK |
Environmental
| Operating Temperature | + 85 C | ||
Documents & Media
Similar Parts
NRF6703
Nordic Semiconductor ASA
RF Modules NRFGO NRF24LE1 24P PROG ADAPTR KIT NRFGO LE1 24PIN OTP ADAPT.KIT KIT ADAPTER NRF24LE1 24-PIN

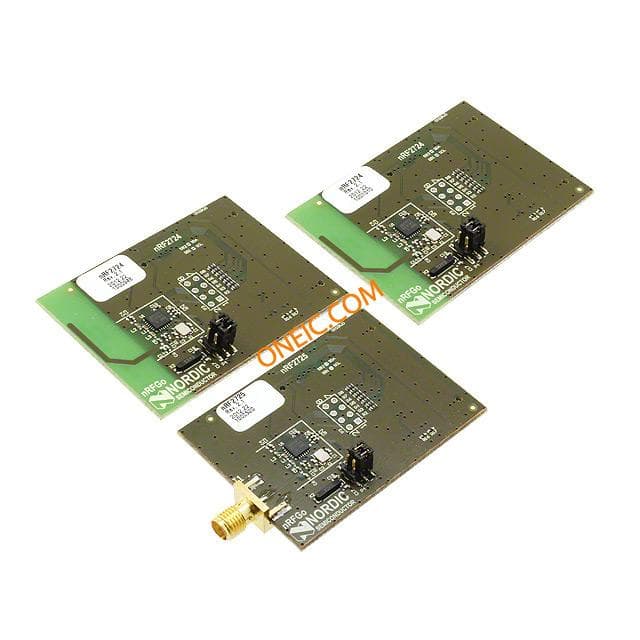

NRF24LE1-F16Q24-DK
