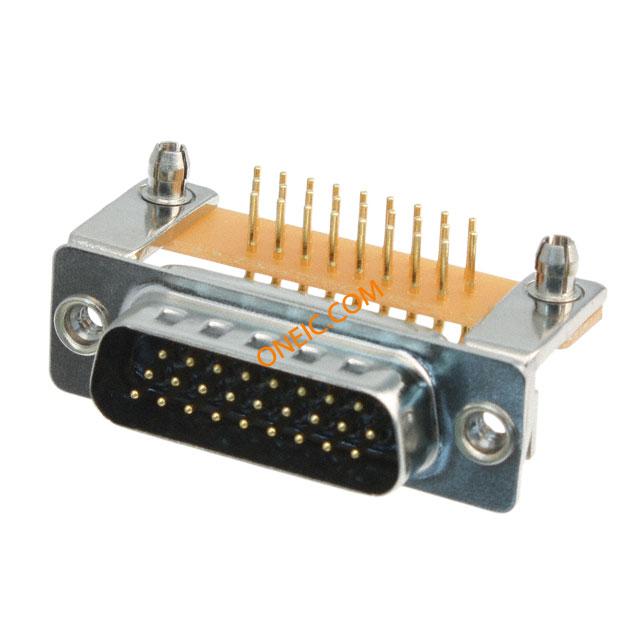

781-M26-113R141
| Manufacturer | |
| Description | D-Sub High Density Connectors 26P HD MALE IP67 R/A 0.350 FP CONN 26POS HD MALE R/A .350 IP67 HD DSUB, PLUG, IP67, THT, 26WAY |
| Category |
对参数有疑问？问 AI 助手
Business
| Tradename | SEAL-D | Standard Package | 28 |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85369010 | ||
Electrical
| Range deg/s | :NORCOMP - Seal D Series | Current Rating (Max) | 5 A |
Mechanical
| Color | Black | Weight | 0.0147 |
| Packaging | Tray | Shell Size | :DA |
| Termination | Solder | Contact Type | Signal |
| Mounting Type | Right | Shell Plating | Nickel |
| Connector Type | Plug, Male Pins | Contact Finish | Gold |
| Flange Feature | Housing/Shell (4-40) | Mounting Style | Panel |
| Number of Rows | 3 | Connector Style | D-Sub, High Density |
| Material - Body | :Steel | Housing Material | Polyamide (PA6T), Nylon 6T |
| Termination Style | Solder | Number of Contacts | 26 |
| Contact Termination | :Solder | Number of Positions | 26 |
| Shell Material, Finish | Steel, Nickel Plated | Contact Finish Thickness | Flash |
| Shell Size, Connector Layout | 2 (DA, A) High Density | ||
Product Info
| Gender | Male | Series | :781 |
| Features | Board Lock, Grounding Indents | ||
Environmental
| Mechanical Life | New Technology: Cutting edge technology for the newest designs. | Ingress Protection | IP67 - Dust Tight, Waterproof |
| Operating Temperature | -55°C ~ 105°C | ||
