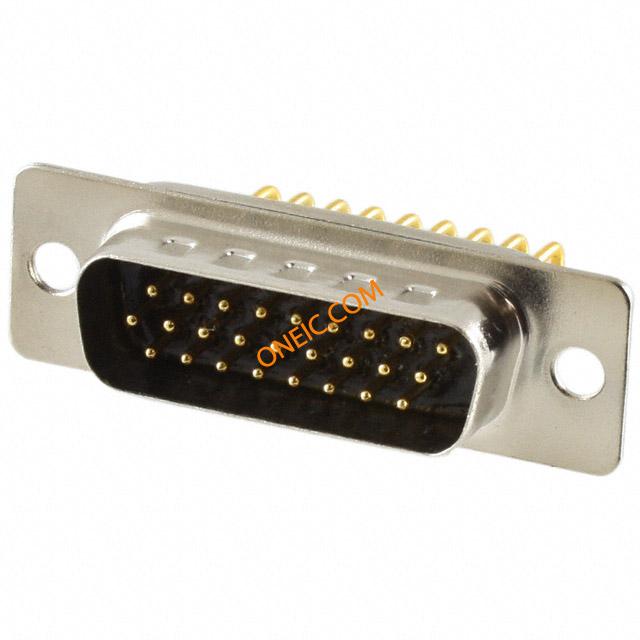

781-M26-113R001
| Manufacturer | |
| Description | D-Sub High Density Connectors IP67,26P M R/A .350 CONN DB-26PS MALE R/A .350" IP67 |
| Category |
Business
| Tradename | SEAL-D | Standard Package | 32 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Current Rating (Max) | 5 A | ||
Mechanical
| Color | Black | Height | 0.35 in |
| Packaging | Tray | Termination | Solder |
| Contact Type | Signal | Mounting Type | Right |
| Shell Plating | Nickel | Connector Type | Plug, Male Pins |
| Contact Finish | Gold | Flange Feature | Housing/Shell (Unthreaded) |
| Mounting Style | Panel | Number of Rows | 3 |
| Shell Material | Steel | Connector Style | D-Sub, High Density |
| Contact Material | Brass | Housing Material | Polyamide (PA6T), Nylon 6T |
| Termination Style | Solder | Number of Contacts | 26 |
| Number of Positions | 26 | Shell Material, Finish | Steel, Nickel Plated |
| Contact Finish Thickness | Flash | Shell Size, Connector Layout | 2 (DA, A) High Density |
Product Info
| Gender | Male | Series | 781 |
Environmental
| Seal Rating | IP 67 | Mechanical Life | New Technology: Cutting edge technology for the newest designs. |
| Ingress Protection | IP67 - Dust Tight, Waterproof | Operating Temperature | -55°C ~ 105°C |
