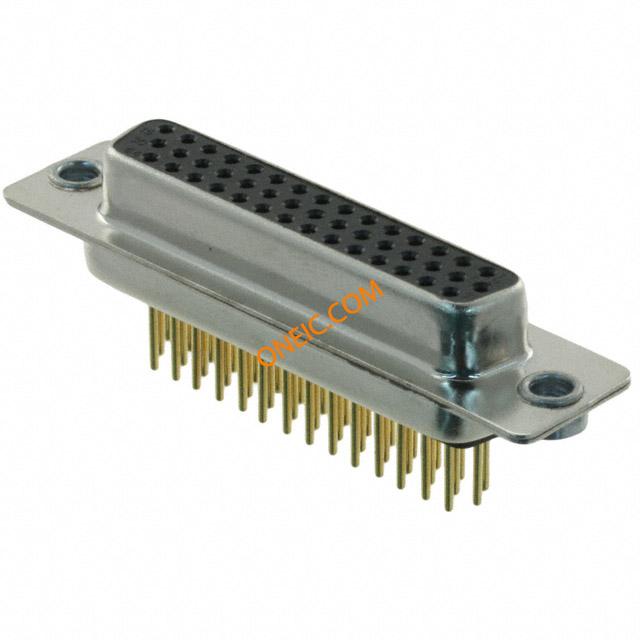

780-M44-213R011
| Manufacturer | |
| Description | D-Sub High Density Connectors IP67,44P FEM HD VERT NI W/CLINCH NUT 1 CONN DB-44PS HD FEMALE VERT IP67 |
| Category |
对参数有疑问？问 AI 助手
Business
| Tradename | SEAL-D | Standard Package | 20 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Current Rating (Max) | 5 A | ||
Mechanical
| Color | Black | Height | 0.256 in |
| Packaging | Tray | Termination | Solder |
| Contact Type | Signal | Mounting Type | Vertical |
| Shell Plating | Nickel | Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold | Flange Feature | Board Side (4-40) |
| Mounting Style | Panel | Number of Rows | 3 |
| Shell Material | Steel | Connector Style | D-Sub, High Density |
| Contact Material | Brass | Housing Material | Polyamide (PA6T), Nylon 6T |
| Termination Style | Solder | Number of Contacts | 44 |
| Number of Positions | 44 | Shell Material, Finish | Steel, Nickel Plated |
| Contact Finish Thickness | Flash | Shell Size, Connector Layout | 3 (DB, B) High Density |
Product Info
| Gender | Male | Series | 780 |
Environmental
| Seal Rating | IP 67 | Mechanical Life | New Technology: Cutting edge technology for the newest designs. |
| Ingress Protection | IP67 - Dust Tight, Waterproof | Operating Temperature | -55°C ~ 105°C |
