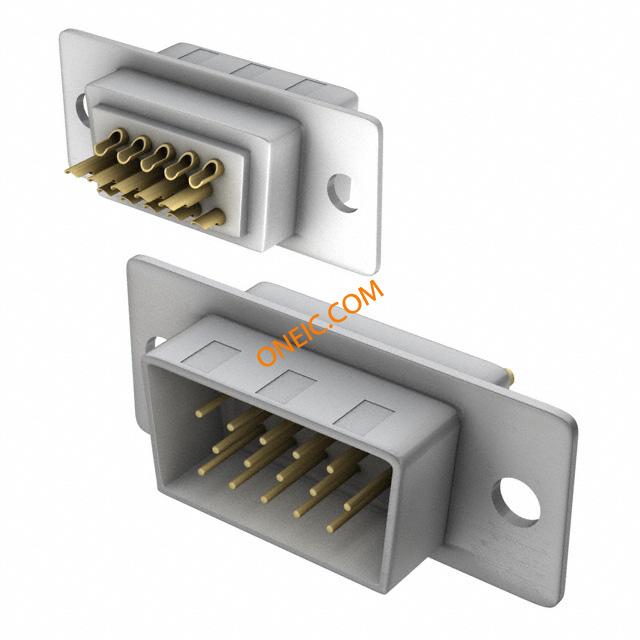

780-M15-103L001
| Manufacturer | |
| Description | D-Sub High Density Connectors 15P HD MALE IP67 SOLDER CUP CONN DB-15POS HD MALE SLD IP67 HD DSUB, PLUG, IP67, SOLDER, 15WAY |
| Category |
Business
| Tradename | SEAL-D | Standard Package | 110 |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85369010 | ||
Electrical
| Range deg/s | :NORCOMP - Seal D Series | Current Rating (Max) | 5 A |
Mechanical
| Color | Black | Weight | 0.0052 |
| Packaging | Tray | Shell Size | :DE |
| Termination | Solder Cup | Contact Type | Signal |
| Mounting Type | Vertical | Shell Plating | Nickel |
| Connector Type | Plug, Male Pins | Contact Finish | Gold |
| Flange Feature | Housing/Shell (Unthreaded) | Mounting Style | Panel |
| Number of Rows | 3 | Connector Style | D-Sub, High Density |
| Material - Body | :Steel | Housing Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Termination Style | Solder | Number of Contacts | 15 |
| Contact Termination | :Solder | Number of Positions | 15 |
| Shell Material, Finish | Steel, Nickel Plated | Contact Finish Thickness | Flash |
| Shell Size, Connector Layout | 1 (DE, E) High Density | ||
Product Info
| Gender | Male | Series | :780 |
| Features | Grounding Indents | ||
Environmental
| Mechanical Life | New Technology: Cutting edge technology for the newest designs. | Ingress Protection | IP67 - Dust Tight, Waterproof |
| Operating Temperature | -55°C ~ 105°C | ||
