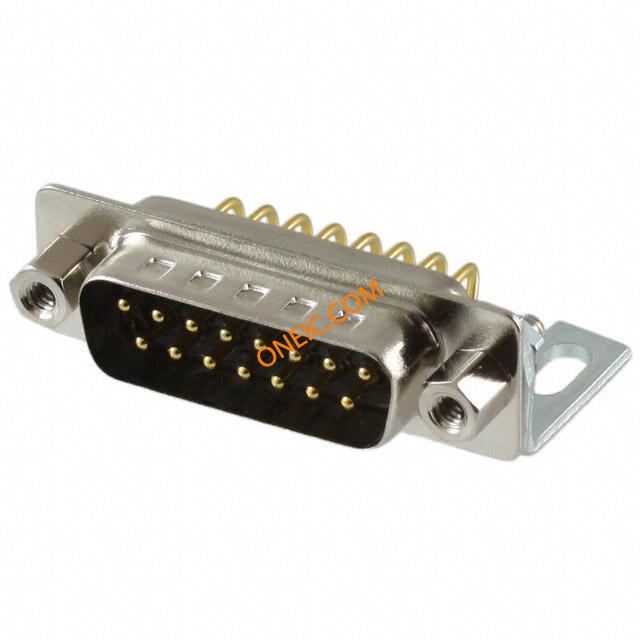

774-E15-113R141

Manufacturer	NorComp Inc.
Description	D-Sub Standard Connectors IP67 15P MALE CONN R/A .370 W/4-40HDWR CONN DB-15PS MALE R/A .370" IP67
Category	Connector SolutionsD-Sub Connectors

对参数有疑问？问 AI 助手

Business

Tradename

SEAL-D

Standard Package

RoHS

RoHS Compliant

Voltage Rating

500 VAC

Current Rating (Max)

5 A

Color	White	Height	10.85 mm
Packaging	Tray	Termination	Solder
Contact Type	Signal	Mounting Type	Right
Shell Plating	Nickel	Connector Type	Plug, Male Pins
Contact Finish	Gold	Flange Feature	Mating Side; Female Screwlock (4-40)
Mounting Style	Panel	Number of Rows	2
Shell Material	Steel	Connector Style	D-Sub
Contact Material	Brass	Housing Material	Polyamide (PA6T), Nylon 6T
Termination Style	Solder	Number of Contacts	15
Number of Positions	15	Shell Material, Finish	Steel, Nickel Plated
Contact Finish Thickness	Flash	Shell Size, Connector Layout	2 (DA, A)

Gender	Male	Series	774
Features	Grounding Indents, Mounting Hardware

Seal Rating	IP 67	Mechanical Life	New Technology: Cutting edge technology for the newest designs.
Ingress Protection	IP67 - Dust Tight, Waterproof	Operating Temperature	- 50 C to + 100 C
