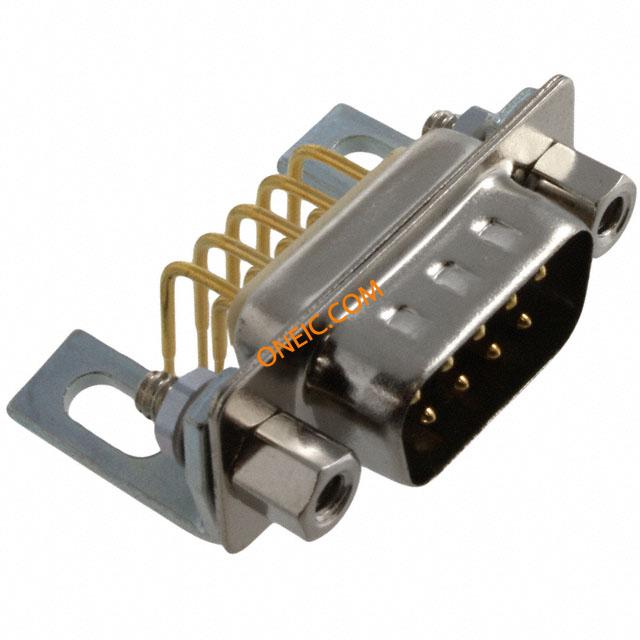

774-E09-113R141

Manufacturer	NorComp Inc.
Description	D-Sub Standard Connectors IP67 9P MALE CONN R/A .370 W/4-40HDWR CONN DB-9POS MALE R/A .370" IP67
Category	Connector SolutionsD-Sub Connectors

对参数有疑问？问 AI 助手

Business

Tradename

SEAL-D

Standard Package

RoHS

RoHS Compliant

Voltage Rating

500 VAC

Current Rating (Max)

5 A

Color	White	Height	10.85 mm
Packaging	Tray	Termination	Solder
Contact Type	Signal	Mounting Type	Right
Shell Plating	Nickel	Connector Type	Plug, Male Pins
Contact Finish	Gold	Flange Feature	Mating Side; Female Screwlock (4-40)
Mounting Style	Panel	Number of Rows	2
Shell Material	Steel	Connector Style	D-Sub
Contact Material	Brass	Housing Material	Polyamide (PA6T), Nylon 6T
Termination Style	Solder	Number of Contacts	9
Number of Positions	9	Shell Material, Finish	Steel, Nickel Plated
Contact Finish Thickness	Flash	Shell Size, Connector Layout	1 (DE, E)

Gender	Male	Series	774
Features	Grounding Indents, Mounting Hardware

Seal Rating	IP 67	Mechanical Life	New Technology: Cutting edge technology for the newest designs.
Ingress Protection	IP67 - Dust Tight, Waterproof	Operating Temperature	- 50 C to + 100 C
