点击放大查看

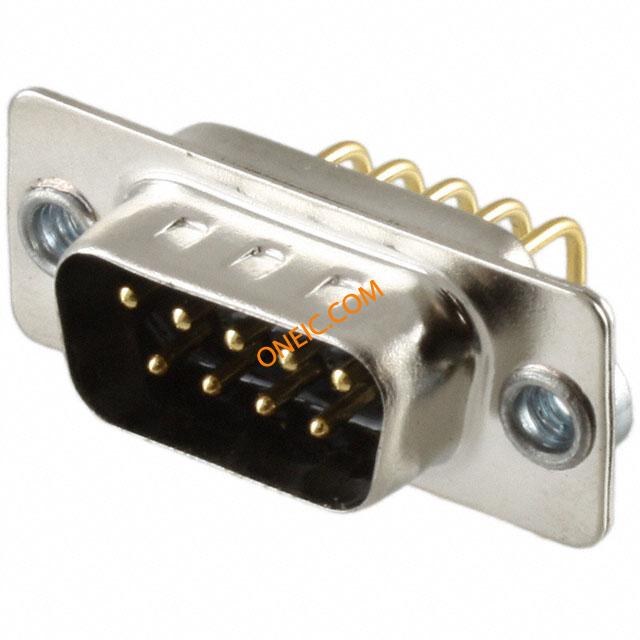

774-E09-113R011
| Manufacturer | |
| Description | D-Sub Standard Connectors IP67 9P MALE CONN R/A .370 W/CLCH NUT CONN DB-9POS MALE R/A .370" IP67 |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 110 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Voltage Rating | 500 VAC | Current Rating (Max) | 5 A |
Mechanical
| Color | White | Height | 10.85 mm |
| Packaging | Tray | Termination | Solder |
| Contact Type | Signal | Mounting Type | Right |
| Shell Plating | Nickel | Connector Type | Plug, Male Pins |
| Contact Finish | Gold | Flange Feature | Board Side (4-40) |
| Mounting Style | Panel | Number of Rows | 2 |
| Shell Material | Steel | Connector Style | D-Sub |
| Contact Material | Brass | Housing Material | Polyamide (PA6T), Nylon 6T |
| Termination Style | Solder | Number of Contacts | 9 |
| Number of Positions | 9 | Shell Material, Finish | Steel, Nickel Plated |
| Contact Finish Thickness | Flash | Shell Size, Connector Layout | 1 (DE, E) |
Product Info
| Gender | Male | Series | 774 |
| Features | Grounding Indents | ||
Environmental
| Seal Rating | IP 67 | Mechanical Life | New Technology: Cutting edge technology for the newest designs. |
| Ingress Protection | IP67 - Dust Tight, Waterproof | Operating Temperature | - 50 C to + 100 C |
