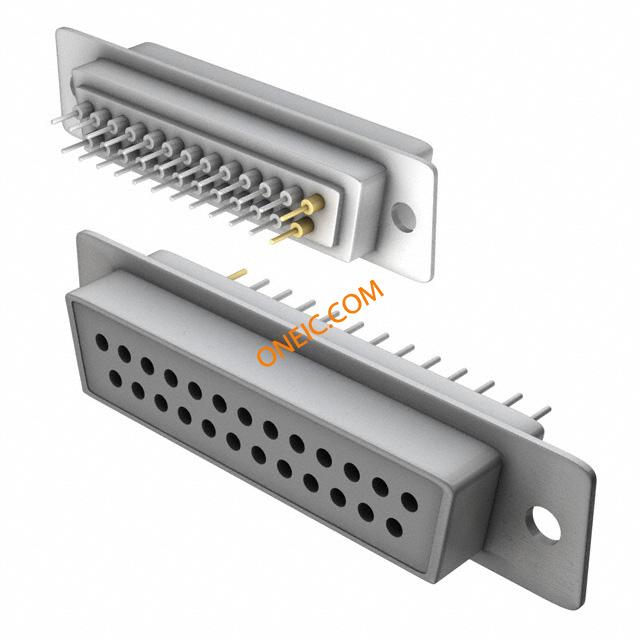

772-E25-213R001
| Manufacturer | |
| Description | D-Sub Standard Connectors 25P FEMALE IP67 VERTICAL DIP SOLDER CONN DB-25POS FEMALE VERT IP67 DSUB, SOCKET, IP67, THT, 25WAY |
| Category |
对参数有疑问？问 AI 助手
Business
| Tradename | SEAL-D | Standard Package | 50 |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85369010 | ||
Electrical
| Range deg/s | :NORCOMP - Seal D Series | Current Rating (Max) | 5 A |
Mechanical
| Color | White | Weight | 0.0131 |
| Packaging | Tray | Shell Size | :DB |
| Termination | Solder | Contact Type | Signal |
| Mounting Type | Vertical | Shell Plating | Nickel |
| Connector Type | Receptacle, Female Sockets | Contact Finish | Gold |
| Flange Feature | Housing/Shell (Unthreaded) | Mounting Style | Panel |
| Number of Rows | 2 | Connector Style | D-Sub |
| Material - Body | :Steel | Housing Material | Polyamide (PA6T), Nylon 6T |
| Termination Style | Solder | Number of Contacts | 25 |
| Contact Termination | :Solder | Number of Positions | 25 |
| Shell Material, Finish | Steel, Nickel Plated | Contact Finish Thickness | Flash |

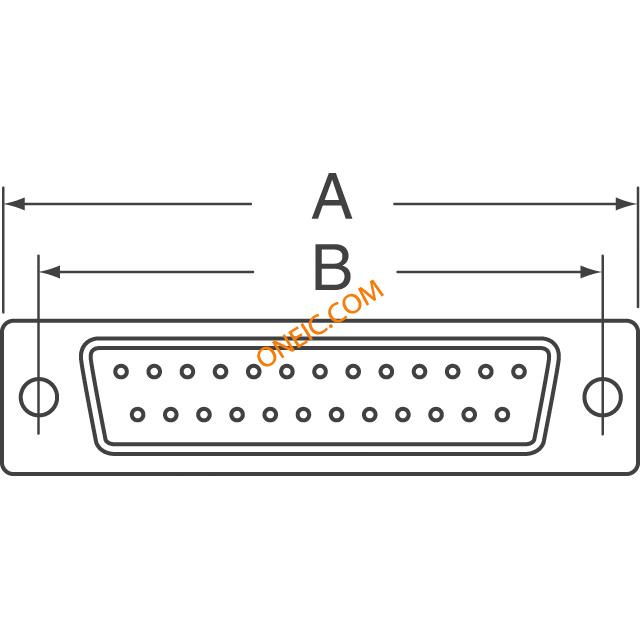

| Shell Size, Connector Layout | 3 (DB, B) | ||
Product Info
| Gender | Female | Series | :772 |
Environmental
| Mechanical Life | New Technology: Cutting edge technology for the newest designs. | Ingress Protection | IP67 - Dust Tight, Waterproof |
| Operating Temperature | -50°C ~ 100°C | ||
