点击放大查看

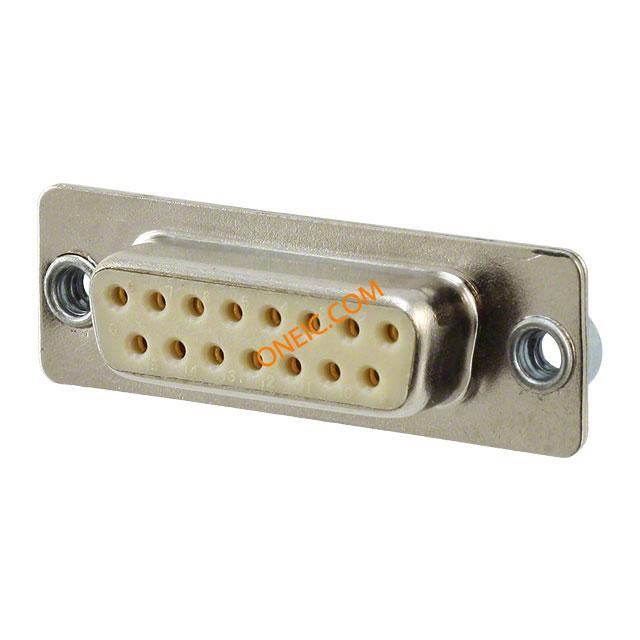

772-E15-203R011
| Manufacturer | |
| Description | D-Sub Standard Connectors IP67,15P FEM SCUP NI W/CLINCH NUT 1 CONN DB-15POS FEMAL SLD CUP IP67 |
| Category |
Business
| Tradename | SEAL-D | Standard Package | 60 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Voltage Rating | 500 VAC | Current Rating (Max) | 5 A |
Mechanical
| Color | White | Height | 0.189 in |
| Packaging | Tray | Termination | Solder Cup |
| Contact Type | Signal | Mounting Type | Vertical |
| Shell Plating | Nickel | Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold | Flange Feature | Board Side (M3) |
| Mounting Style | Panel | Number of Rows | 2 |
| Shell Material | Steel | Connector Style | D-Sub |
| Contact Material | Brass | Housing Material | Polybutylene Terephthalate (PBT) |
| Termination Style | Solder | Number of Contacts | 15 |
| Number of Positions | 15 | Shell Material, Finish | Steel, Nickel Plated |
| Contact Finish Thickness | Flash | Shell Size, Connector Layout | 2 (DA, A) |
Product Info
| Gender | Female | Series | 772 |
Environmental
| Seal Rating | IP 67 | Mechanical Life | New Technology: Cutting edge technology for the newest designs. |
| Ingress Protection | IP67 - Dust Tight, Waterproof | Operating Temperature | - 50 C to + 100 C |
