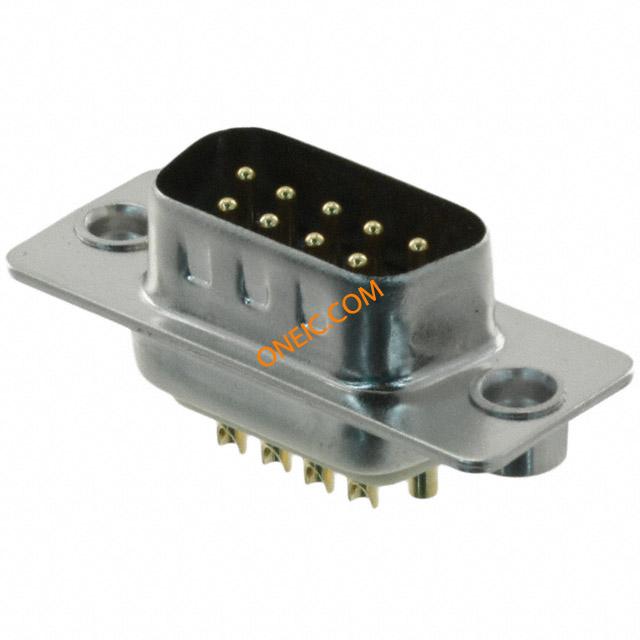

772-E09-103R011
| Manufacturer | |
| Description | D-Sub Standard Connectors IP67,9P M SCUP NI W/CLINCH NUT 1 CONN DB-9POS MALE SLD CUP IP67 |
| Category |
Business
| Tradename | SEAL-D | Standard Package | 80 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Voltage Rating | 500 VAC | Current Rating (Max) | 5 A |
Mechanical
| Color | White | Height | 0.189 in |
| Packaging | Tray | Termination | Solder Cup |
| Contact Type | Signal | Mounting Type | Vertical |
| Shell Plating | Nickel | Connector Type | Plug, Male Pins |
| Contact Finish | Gold | Flange Feature | Board Side (4-40) |
| Mounting Style | Panel | Number of Rows | 2 |
| Shell Material | Steel | Connector Style | D-Sub |
| Contact Material | Brass | Housing Material | Polybutylene Terephthalate (PBT) |
| Termination Style | Solder | Number of Contacts | 9 |
| Number of Positions | 9 | Shell Material, Finish | Steel, Nickel Plated |
| Contact Finish Thickness | Flash | Shell Size, Connector Layout | 1 (DE, E) |
Product Info
| Gender | Male | Series | 772 |
| Features | Grounding Indents | ||
Environmental
| Seal Rating | IP 67 | Mechanical Life | New Technology: Cutting edge technology for the newest designs. |
| Ingress Protection | IP67 - Dust Tight, Waterproof | Operating Temperature | - 50 C to + 100 C |
