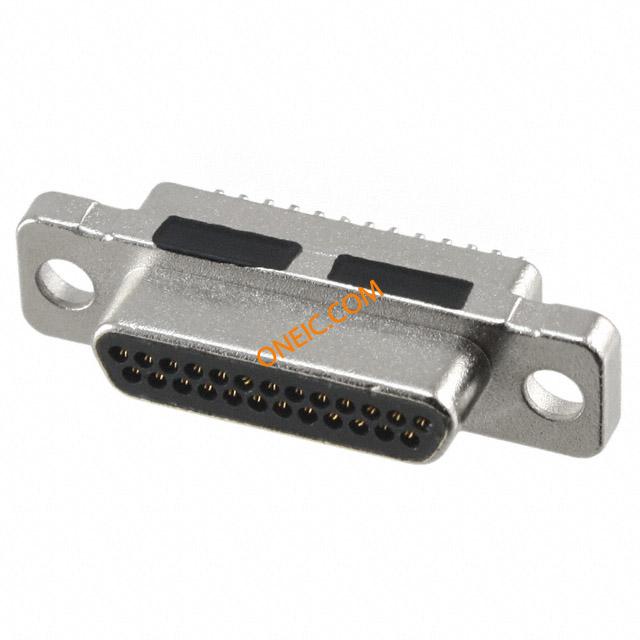

380-025-113L001
| Manufacturer | |
| Description | D-Sub Micro-D Connectors MICRO-D 25P MALE VERT PCB MOUNT CONN D-SUB 25POS PLUG SLD T/H MICRO-D, PLUG, STRAIGHT, THT, 25WAY |
| Category |
对参数有疑问？问 AI 助手
Business
| Tradename | MICRO-D | Standard Package | 70 |
Compliance
| RoHS | RoHS Compliant By Exemption | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85369010 | ||
Electrical
| Range deg/s | :NORCOMP - Micro D Series | Current Rating (Max) | 1 A |
Mechanical
| Pitch | 1.27 mm | Weight | 0.0039 |
| Packaging | Tray | Insulation | Insulated |
| Shell Size | 25 | Termination | Solder |
| Contact Type | Signal | Mounting Type | Vertical |
| Shell Plating | Nickel | Connector Type | Plug, Male Pins |
| Contact Finish | Gold | Flange Feature | Housing/Shell (Unthreaded) |
| Mounting Style | Through Hole | Number of Rows | 2 |
| Shell Material | Zinc Alloy | Connector Style | D-Type, Micro-D |
| Material - Body | :Zinc | Contact Material | Beryllium Copper |
| Housing Material | Polybutylene Terephthalate (PBT) | Termination Style | Solder |
| Number of Contacts | 25 | Contact Termination | :Solder |
| Insulation Material | Thermoplastic | Number of Positions | 25 |
| Shell Material, Finish | Zinc Alloy, Nickel Plated | Contact Finish Thickness | 15µin (0.38µm) |
| Shell Size, Connector Layout | 0.050 Pitch x 0.043 Row to Row | ||
Product Info
| Gender | Male | Series | 380 |
| Features | Shielded | ||
Environmental
| Mechanical Life | New Product: New from this manufacturer. | Operating Temperature | -55°C ~ 85°C |
