点击放大查看

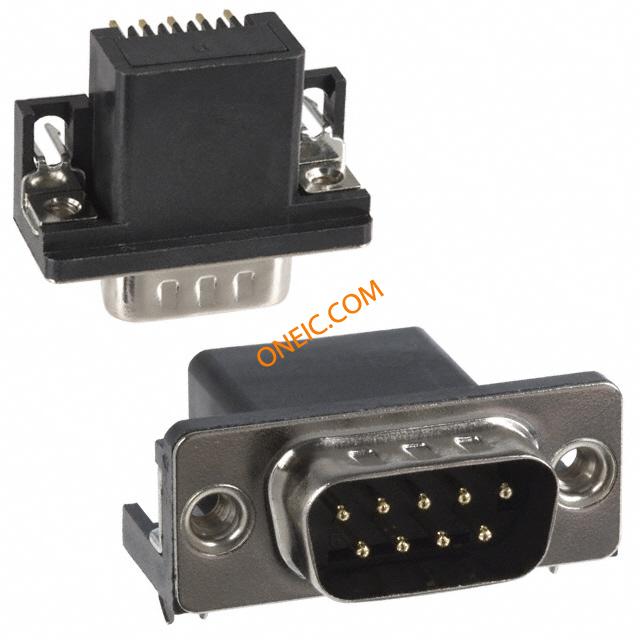

183-009-113R531
| Manufacturer | |
| Description | D-Sub Standard Connectors 9P MALE RIGHT ANGLE .590 FOOTPRINT CONN DB9 MALE .590" R/A NICKEL |
| Category |
Business
| Product Category | D-Sub Standard Connectors | Standard Package | 90 |
| Factory Pack Quantity | 90 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Current Rating (Max) | 5 A | ||
Mechanical
| Color | Black | Packaging | Tray |
| Termination | Solder | Contact Type | Signal |
| Mounting Type | Right | Shell Plating | Nickel |
| Connector Type | Plug, Male Pins | Contact Finish | Gold |
| Flange Feature | Housing/Shell (4-40) | Mounting Style | Through Hole |
| Number of Rows | 2 | Shell Material | Steel |
| Connector Style | D-Sub | Contact Material | Brass, Phosphor Bronze |
| Housing Material | Polyamide (PA9T), Nylon 9T | Termination Style | Solder |
| Number of Contacts | 9 | Number of Positions | 9 |
| Shell Material, Finish | Steel, Nickel Plated | Contact Finish Thickness | Flash |
| Shell Size, Connector Layout | 1 (DE, E) | ||
Product Info
| Gender | Male | Series | 183 |
| Features | Board Lock, Grounding Indents | ||
Environmental
| Operating Temperature | -55°C ~ 105°C | ||
Documents & Media
Similar Parts
171-009-203L001
NorComp
D-Sub Standard Connectors 9P FEMALE SOLDER CUP CONN DB9 FEMALE SLD CUP NICKEL
.jpg&w=3840&q=75)
171-009-203L021
NorComp
D-Sub Standard Connectors 9P Female Solder Cup w/ Clinch Nut 2 CONN DB9 FEMALE SLD CUP NICKEL
171-009-202L001
NorComp
D-Sub Standard Connectors 9P Female CONN DB9 FMALE SOLDER CUP TIN
171-009-203L011
NorComp
D-Sub Standard Connectors 9P Female Solder Cup w/ Clinch Nut 1 CONN DB9 FEMALE SLD CUP NICKEL
171-009-202L021
NorComp
D-Sub Standard Connectors 9P Female CONN DB9 FMALE SOLDER CUP TIN
171-009-202L031
NorComp
D-Sub Standard Connectors 9P Female CONN DB9 FMALE SOLDER CUP TIN
171-009-203L031
NorComp
D-Sub Standard Connectors 9P Female Solder Cup w/ Clinch Nut 3 CONN DB9 FEMALE SLD CUP NICKEL
171-009-202L011
NorComp
D-Sub Standard Connectors 9P Female CONN DB9 FMALE SOLDER CUP TIN
186-009-292L001
Norcomp Inc.
CONN DB9 FEM IDC LO PRO ECONOMY
186-009-292L551
Norcomp Inc.
CONN DB9 FEM IDC LO PRO ECONOMY

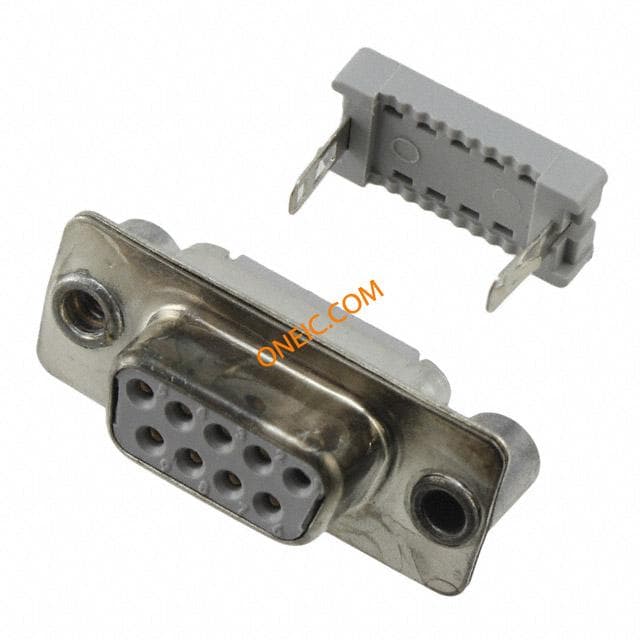

184-009-292-021
