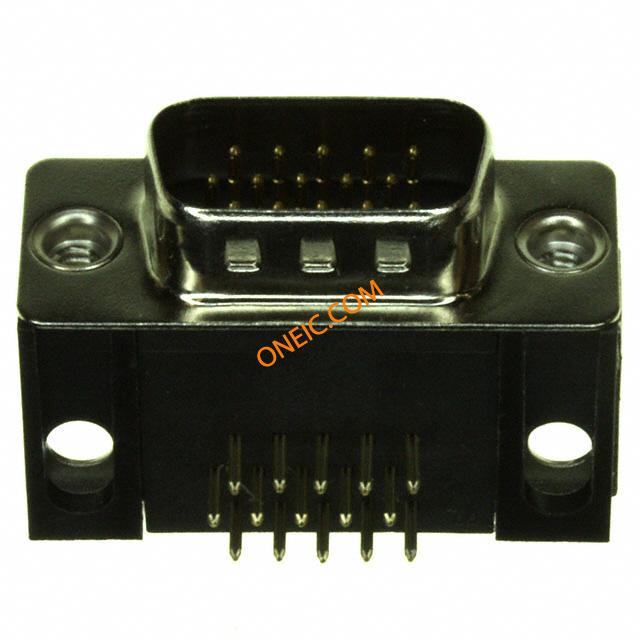

181-015-113R171
| Manufacturer | |
| Description | D-Sub High Density Connectors 15P Male Right Angle CONN DB15 MALE HI DENSITY RA |
| Category |
Business
| Product Category | D-Sub High Density Connectors | Standard Package | 90 |
| Factory Pack Quantity | 90 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Voltage Rating | 500 VAC | Current Rating (Max) | 2 A |
Mechanical
| Color | Black | Packaging | Tray |
| Termination | Solder | Contact Type | Signal |
| Mounting Type | Through Hole, Right Angle | Shell Plating | Nickel |
| Connector Type | Plug, Male Pins | Contact Finish | Gold |
| Flange Feature | Housing/Shell (4-40) | Mounting Style | Through Hole |
| Number of Rows | 3 | Connector Style | D-Sub, High Density |
| Housing Material | Polyamide (PA9T), Nylon 9T | Termination Style | Solder |
| Number of Contacts | 15 | Number of Positions | 15 |
| Shell Material, Finish | Steel, Nickel Plated | Contact Finish Thickness | Flash |
| Shell Size, Connector Layout | 1 (DE, E) High Density | ||
Product Info
| Gender | Male | Series | 181 |
| Features | Ground Strap, Grounding Indents, Shielded | ||
Environmental
| Operating Temperature | -50°C ~ 100°C | ||
