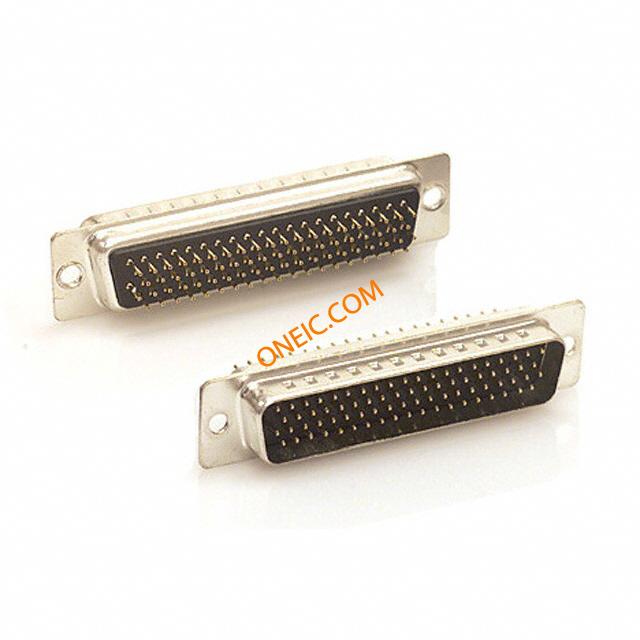

180-078-113R001
| Manufacturer | |
| Description | D-Sub High Density Connectors 78P MALE VERT DIP SOLDER CONN DB78 MALE HD DIP SLD NICKEL |
| Category |
Business
| Product Category | D-Sub High Density Connectors | Standard Package | 50 |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Current Rating (Max) | 2 A | ||
Mechanical
| Packaging | Tray | Termination | Solder |
| Contact Type | Signal | Mounting Type | Through Hole |
| Shell Plating | Nickel | Connector Type | Plug, Male Pins |
| Contact Finish | Gold | Flange Feature | Housing/Shell (Unthreaded) |
| Mounting Style | Through Hole | Number of Rows | 4 |
| Connector Style | D-Sub, High Density | Housing Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Termination Style | Solder | Number of Contacts | 78 |
| Number of Positions | 78 | Shell Material, Finish | Steel, Nickel Plated |
| Contact Finish Thickness | Flash | Shell Size, Connector Layout | 5 (DD, D) High Density |
Product Info
| Gender | Male | Features | Grounding Indents, Shielded |
Environmental
| Operating Temperature | -50°C ~ 100°C | ||
