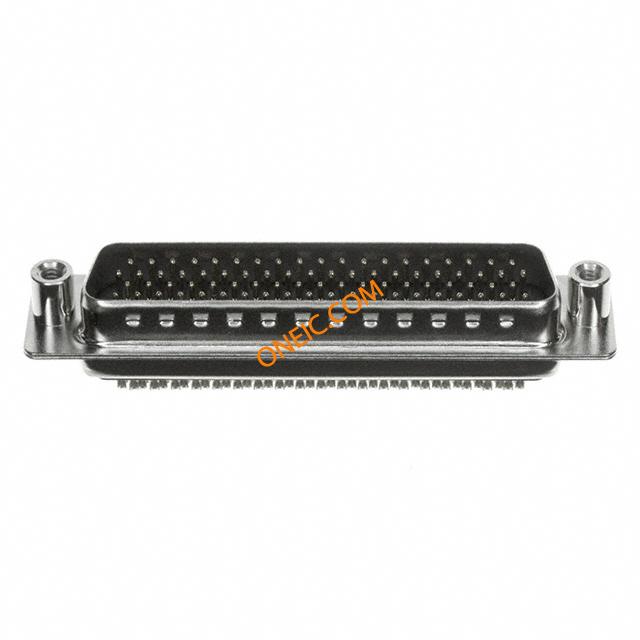

180-078-103L031
| Manufacturer | |
| Description | D-Sub High Density Connectors 78P Male Solder Cup w/ Clinch Nut 3 CONN DB78 MALE HD SLD CUP NICKEL |
| Category |
Business
| Product Category | D-Sub High Density Connectors | Standard Package | 40 |
| Factory Pack Quantity | 40 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Voltage Rating | 500 VAC | Current Rating (Max) | 2 A |
Mechanical
| Packaging | Tray | Termination | Solder Cup |
| Contact Type | Signal | Mounting Type | Free Hanging (In-Line); Panel Mount |
| Shell Plating | Nickel | Connector Type | Plug, Male Pins |
| Contact Finish | Gold | Flange Feature | Mating Side (4-40) |
| Mounting Style | Wire | Number of Rows | 4 |
| Connector Style | D-Sub, High Density | Housing Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Termination Style | Solder | Number of Contacts | 78 |
| Number of Positions | 78 | Shell Material, Finish | Steel, Nickel Plated |
| Contact Finish Thickness | Flash | Shell Size, Connector Layout | 5 (DD, D) High Density |
Product Info
| Gender | Male | Series | 180 |
| Features | Grounding Indents, Shielded | ||
Environmental
| Operating Temperature | -50°C ~ 100°C | ||
