点击放大查看

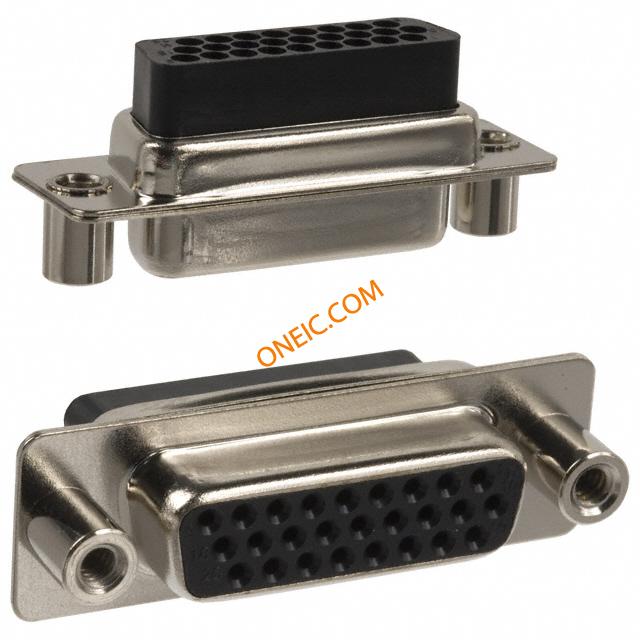

180-026-273L030
| Manufacturer | |
| Description | D-Sub High Density Connectors 26P Female Crimp w/ Clinch Nut 3 CONN DB26 FEMALE HD CRIMP NICKEL |
| Category |
Business
| Other Names | 3826FE | Product Category | D-Sub High Density Connectors |
| Standard Package | 60 | Factory Pack Quantity | 60 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Voltage Rating | 500 VAC | Current Rating (Max) | 2 A |
Mechanical
| Packaging | Tray | Contact Type | Signal |
| Mounting Type | Free Hanging (In-Line) | Shell Plating | Nickel |
| Connector Type | Receptacle for Female Contacts | Flange Feature | Mating Side (4-40) |
| Mounting Style | Wire | Number of Rows | 3 |
| Connector Style | D-Sub, High Density | Termination Style | Crimp |
| Number of Contacts | 26 | Number of Positions | 26 |
| Shell Material, Finish | Steel, Nickel Plated | Shell Size, Connector Layout | 2 (DA, A) High Density |
Product Info
| Note | Contacts Not Provided | Gender | Female |
| Series | 180 | ||
Environmental
| Operating Temperature | -50°C ~ 100°C | ||
