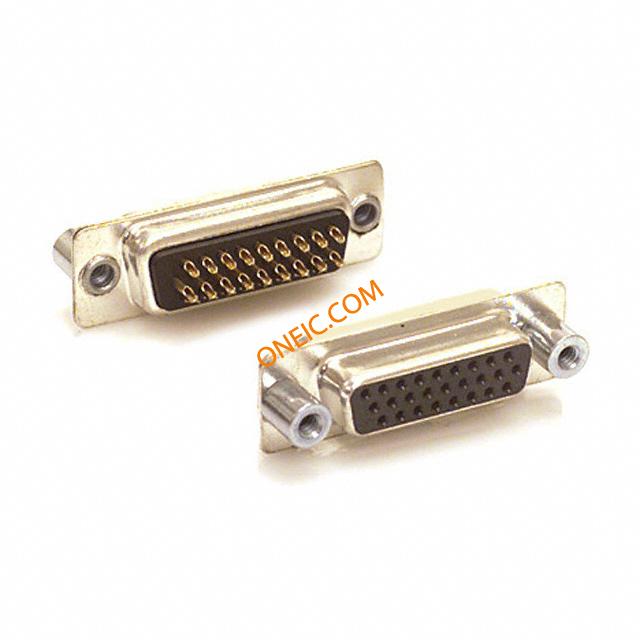

180-026-202L031
| Manufacturer | |
| Description | D-Sub High Density Connectors 26P Female CONN DB26 FEMALE HD SLD CUP TIN |
| Category |
Business
| Product Category | D-Sub High Density Connectors | Standard Package | 60 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Current Rating (Max) | 5A | ||
Mechanical
| Packaging | Tray | Termination | Solder Cup |
| Contact Type | Signal | Mounting Type | Free Hanging (In-Line); Panel Mount |
| Connector Type | Receptacle, Female Sockets | Contact Finish | Gold |
| Flange Feature | Mating Side (4-40) | Number of Rows | 3 |
| Connector Style | D-Sub, High Density | Housing Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Number of Positions | 26 | Shell Material, Finish | Steel, Tin Plated |
| Contact Finish Thickness | Flash | Shell Size, Connector Layout | 2 (DA, A) High Density |
Product Info
| Features | Shielded | ||
Environmental
| Operating Temperature | -50°C ~ 100°C | ||
