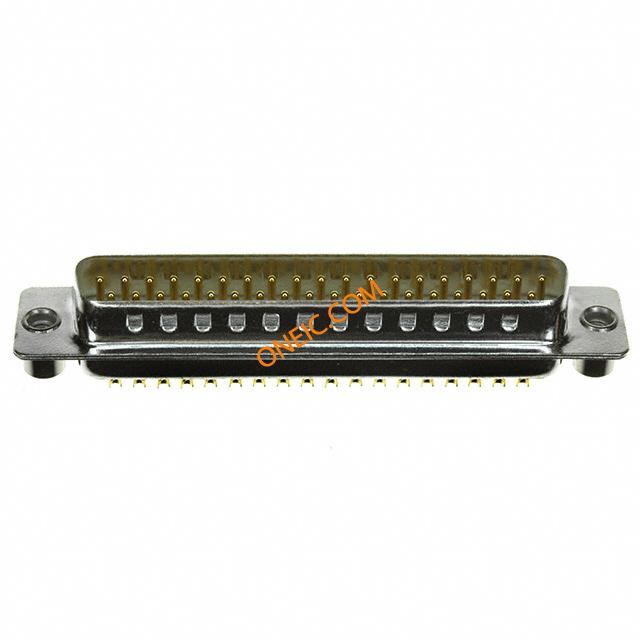

172-E37-102R021
| Manufacturer | |
| Description | D-Sub Standard Connectors 37P Male CONN DB37 MALE SOLDER CUP TIN |
| Category |
Business
| Tradename | M-SERIES | Product Category | D-Sub Standard Connectors |
| Standard Package | 30 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Current Rating (Max) | 5A | ||
Mechanical
| Color | White | Packaging | Tray |
| Termination | Solder Cup | Contact Type | Signal |
| Mounting Type | Free Hanging (In-Line); Panel Mount | Connector Type | Plug, Male Pins |
| Contact Finish | Gold | Flange Feature | Board Side (4-40) |
| Number of Rows | 2 | Connector Style | D-Sub |
| Housing Material | Polybutylene Terephthalate (PBT) | Number of Positions | 37 |
| Shell Material, Finish | Steel, Tin Plated | Contact Finish Thickness | Flash |
| Shell Size, Connector Layout | 4 (DC, C) | ||
Product Info
| Features | Grounding Indents | ||
Environmental
| Operating Temperature | -50°C ~ 100°C | ||
