点击放大查看

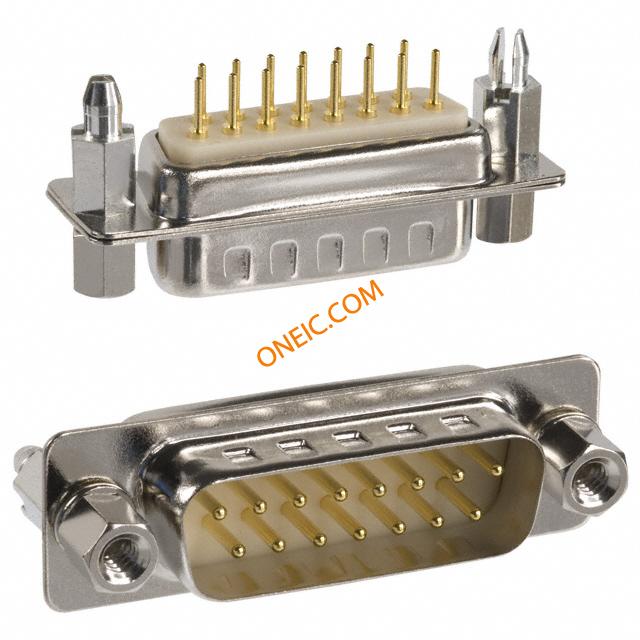

172-E15-113R911
| Manufacturer | |
| Description | D-Sub Standard Connectors 15P Male V Dp Solder w/ Clinch Nut 10 CONN DB15 MALE SOLDER DIP NKL |
| Category |
对参数有疑问？问 AI 助手
Business
| Tradename | M-SERIES | Product Category | D-Sub Standard Connectors |
| Standard Package | 60 | Factory Pack Quantity | 60 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Voltage Rating | 500 V | Current Rating (Max) | 5 A |
Mechanical
| Color | White | Packaging | Tray |
| Insulation | Insulated | Termination | Solder |
| Contact Type | Machined Contacts | Mounting Type | Vertical |
| Shell Plating | Nickel | Connector Type | Plug, Male Pins |
| Contact Finish | Gold | Flange Feature | Mating Side; Female Screwlock (4-40) |
| Mounting Style | Through Hole | Number of Rows | 2 |
| Shell Material | Steel | Connector Style | D-Sub |
| Contact Material | Brass | Housing Material | Polyamide (PA6T), Nylon 6T |
| Termination Style | Solder | Number of Contacts | 15 |
| Insulation Material | Polyamide 6 | Number of Positions | 15 |
| Shell Material, Finish | Steel, Nickel Plated | Contact Finish Thickness | Flash |
| Shell Size, Connector Layout | 2 (DA, A) | ||
Product Info
| Gender | Male | Series | 172 |
| Features | Board Lock, Grounding Indents | ||
Environmental
| Operating Temperature | - 50 C to + 100 C | ||
