点击放大查看

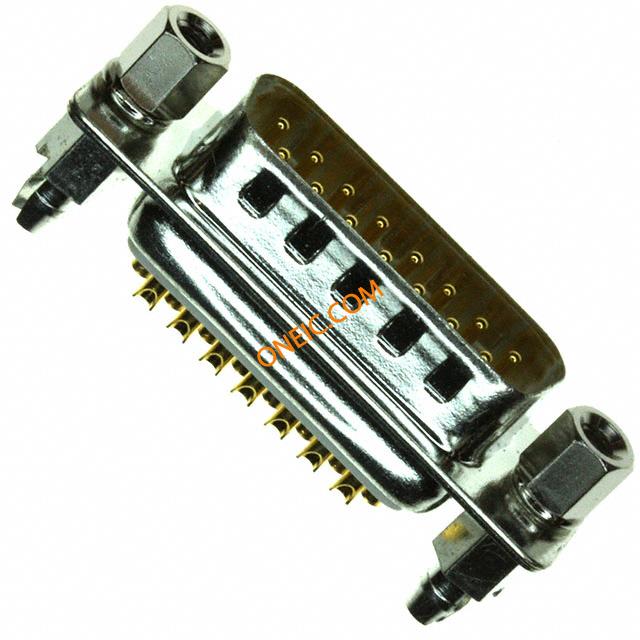

172-E15-102-911
| Manufacturer | |
| Description | D-Sub Standard Connectors 15 POS. SO./CUP MALE .225 SP/BL B/S CONN DB15 MALE SOLDER CUP TIN |
| Category |
Business
| Product Category | D-Sub Standard Connectors | Standard Package | 50 |
| Factory Pack Quantity | 60 | ||
Compliance
| RoHS | No | ||
Electrical
| Current Rating (Max) | 5 A | ||
Mechanical
| Color | White | Packaging | Tray |
| Termination | Solder Cup | Contact Type | Signal |
| Mounting Type | Vertical | Shell Plating | Tin |
| Connector Type | Plug, Male Pins | Contact Finish | Gold |
| Flange Feature | Mating Side; Female Screwlock (4-40) | Mounting Style | Through Hole |
| Number of Rows | 2 | Shell Material | Steel |
| Connector Style | D-Sub | Housing Material | Polybutylene Terephthalate (PBT) |
| Termination Style | Solder | Number of Contacts | 15 |
| Number of Positions | 15 | Shell Material, Finish | Steel, Tin Plated |
| Contact Finish Thickness | Flash | Shell Size, Connector Layout | 2 (DA, A) |
Product Info
| Gender | Male | Series | 172 |
| Features | Board Lock, Grounding Indents | ||
Environmental
| Mechanical Life | End of Life: Scheduled for obsolescence and will be discontinued by the manufacturer. | Operating Temperature | -50°C ~ 100°C |
Documents & Media
Similar Parts
172-E15-213R001
NorComp
D-Sub Standard Connectors 15P FEMALE DIP SODR CONN DB15 FEMALE SLD DIP NKL DSUB, SOCKET, THT, 15WAY
160-000-115R000
NorComp
D-Sub Tools & Hardware 15P MALE DUST COVER CLEAR PE MATERIAL DUST COVER FOR DB15 MALE
172-015-242R001
NorComp
D-Sub Standard Connectors 15P FEMALE WIRE-WIRE CONN DB15 FEMALE WIRE WRAP TIN

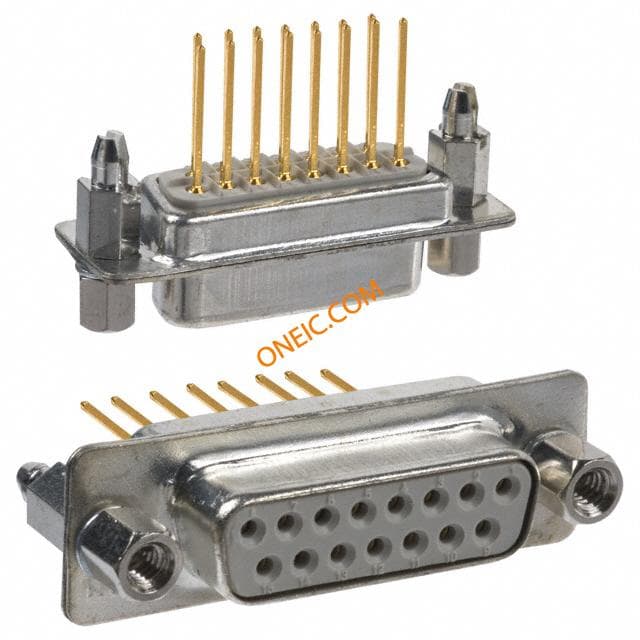

172-015-242R911
