点击放大查看

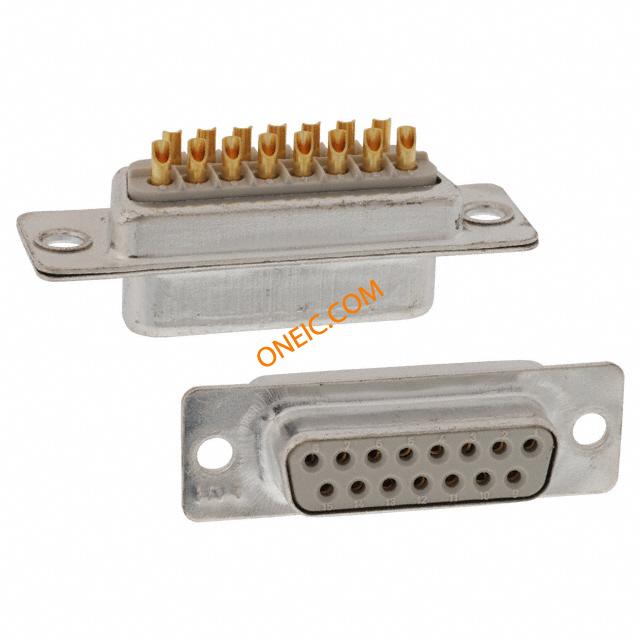

172-015-202R001
| Manufacturer | |
| Description | D-Sub Standard Connectors 15P Fem gold flash Solder Cup CONN DB15 FEMALE SOLDER CUP TIN |
| Category |
Business
| Tradename | M-SERIES | Product Category | D-Sub Standard Connectors |
| Standard Package | 40 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Current Rating (Max) | 5 A | ||
Mechanical
| Color | Beige | Height | 12.6 mm |
| Packaging | Tray | Insulation | Insulated |
| Termination | Solder Cup | Contact Type | Signal |
| Mounting Type | Straight | Shell Plating | Tin |
| Connector Type | Receptacle, Female Sockets | Contact Finish | Gold |
| Flange Feature | Housing/Shell (Unthreaded) | Mounting Style | Panel |
| Number of Rows | 2 | Shell Material | Steel |
| Connector Style | D-Sub | Contact Material | Brass |
| Housing Material | Polybutylene Terephthalate (PBT), Polyester | Termination Style | Solder |
| Number of Contacts | 15 | Number of Positions | 15 |
| Shell Material, Finish | Steel, Tin Plated | Contact Finish Thickness | Flash |
| Shell Size, Connector Layout | 2 (DA, A) | ||
Product Info
| Gender | Female | ||
Environmental
| Operating Temperature | - 50 C to + 125 C | ||
Documents & Media
Similar Parts
970-015-030R121
NorComp
D-Sub Backshells 15P TOP ENTRYDIECAST NICKEL PLATED BACKSHELL DB15 DIE CAST NICKEL HOOD, DSUB, 4-40 SCREW, 15WAY
971-015-010R011
NorComp
D-Sub Backshells 15P 45 DEGREE BLACK PLASTIC BACKSHELL DB15 BLK PLASTIC 45DEG
979-015-030R121
NorComp
D-Sub Backshells 15P TOP ENT DIECAST NICKEL PLATED BACKSHELL DB15 DIE CAST ZINC HOOD, DSUB, 180DEG, 4-40 SCREW, 15WAY

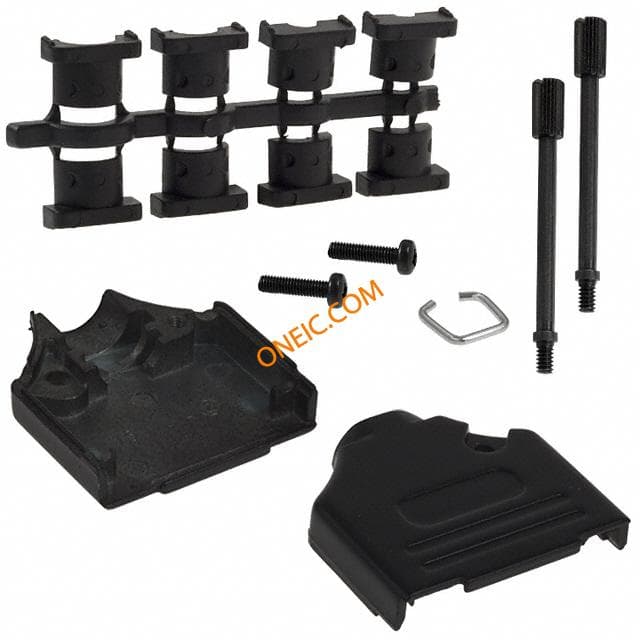

970-015-040R011
NorComp
D-Sub Backshells 15P TOP ENTRY BLACK CHROMATE BACKSHELL DB15 DIE CAST BLK CHRM
978-015-010R031
NorComp
D-Sub Backshells 15P TOP ENTRY GREY PLASTIC BACKSHELL DB15 GREY PLASTIC
981-015-130R121
NorComp
D-Sub Backshells 15P 90D w/ Thmbscrew Die Cast w/ Grommet BACKSHELL 15POS R/A DIE CAST
978-015-020R121
NorComp
D-Sub Backshells 15P TOP ENTRY METALIZED PLASTIC BACKSHELL DB15 METALIZED PLASTIC
970-015-010R011
NorComp
D-Sub Backshells 15P TOP ENTRY BLACK PLASTIC BACKSHELL DB15 BLACK PLASTIC

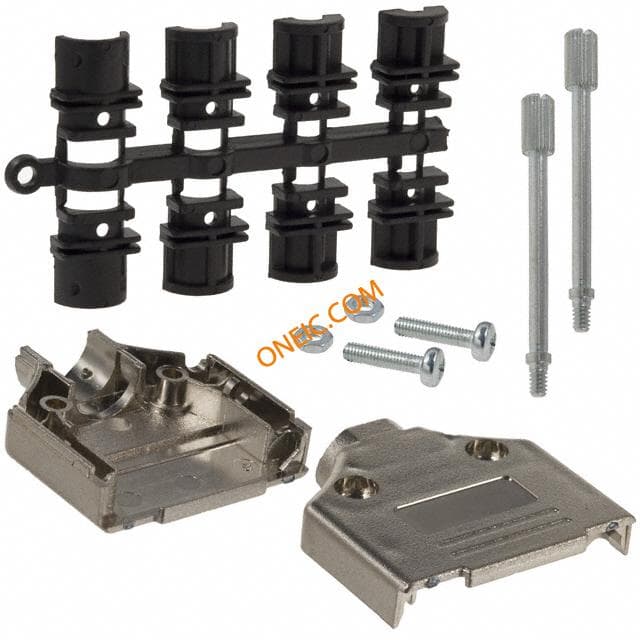

970-015-020R121
