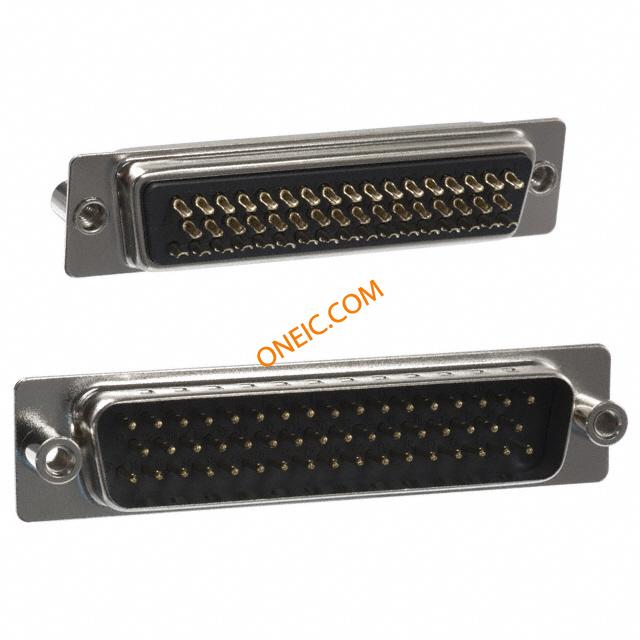

171-050-103L031
| Manufacturer | |
| Description | D-Sub Standard Connectors 50P Male Solder Cup w/ Clinch Nut 3 CONN DB50 MALE SOLDER CUP NICKEL |
| Category |
Business
| Product Category | D-Sub Standard Connectors | Standard Package | 40 |
| Factory Pack Quantity | 40 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Voltage Rating | 500 VAC | Current Rating (Max) | 5 A |
Mechanical
| Color | Black | Packaging | Tray |
| Termination | Solder Cup | Contact Type | Signal |
| Mounting Type | Free Hanging (In-Line); Panel Mount | Shell Plating | Nickel |
| Connector Type | Plug, Male Pins | Contact Finish | Gold |
| Flange Feature | Mating Side (4-40) | Mounting Style | Wire |
| Number of Rows | 3 | Connector Style | D-Sub |
| Housing Material | Polybutylene Terephthalate (PBT) | Termination Style | Solder |
| Number of Contacts | 50 | Number of Positions | 50 |
| Shell Material, Finish | Steel, Nickel Plated | Contact Finish Thickness | Flash |
| Shell Size, Connector Layout | 5 (DD, D) | ||
Product Info
| Gender | Male | Series | 171 |
| Features | Grounding Indents | ||
Environmental
| Operating Temperature | -50°C ~ 100°C | ||
