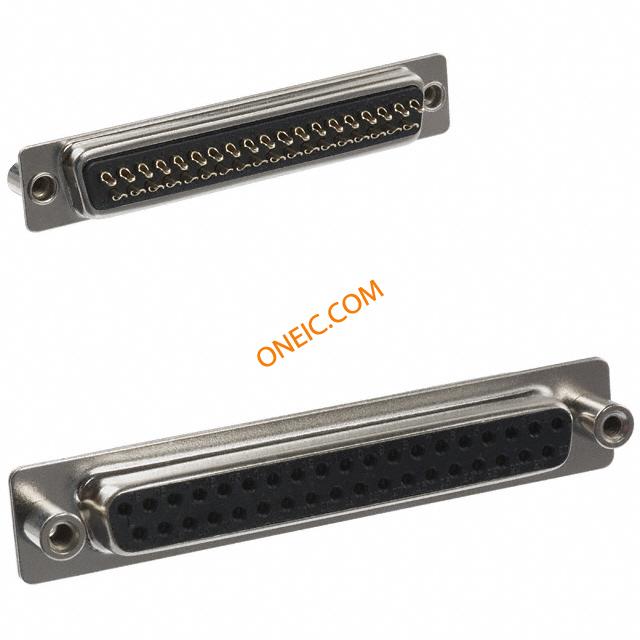

171-037-203L031
| Manufacturer | |
| Description | D-Sub Standard Connectors 37P Fem Solder Cup w/ Clinch Nut 3 CONN DB37 FEMALE SLD CUP NICKEL |
| Category |
Business
| Product Category | D-Sub Standard Connectors | Standard Package | 30 |
| Factory Pack Quantity | 30 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Voltage Rating | 500 VAC | Current Rating (Max) | 5 A |
Mechanical
| Color | Black | Packaging | Tray |
| Termination | Solder Cup | Contact Type | Signal |
| Mounting Type | Free Hanging (In-Line); Panel Mount | Shell Plating | Nickel |
| Connector Type | Receptacle, Female Sockets | Contact Finish | Gold |
| Flange Feature | Mating Side (4-40) | Mounting Style | Wire |
| Number of Rows | 2 | Connector Style | D-Sub |
| Housing Material | Polybutylene Terephthalate (PBT) | Termination Style | Solder |
| Number of Contacts | 37 | Number of Positions | 37 |
| Shell Material, Finish | Steel, Nickel Plated | Contact Finish Thickness | Flash |
| Shell Size, Connector Layout | 4 (DC, C) | ||
Product Info
| Gender | Female | Series | 171 |
| Features | Grounding Indents | ||
Environmental
| Operating Temperature | -50°C ~ 100°C | ||
Documents & Media
Similar Parts
972-037-01SR031
NorComp
D-Sub Backshells 37P CLAMSHELL GREY SLIM LINE PLASTIC BACKSHELL DB37 CLAM SLIM GREY
183-037-113R531
NorComp
D-Sub Standard Connectors 37P MALE RIGHT ANGLE .590 FOOTPRINT CONN DB37 MALE .590" R/A NICKEL

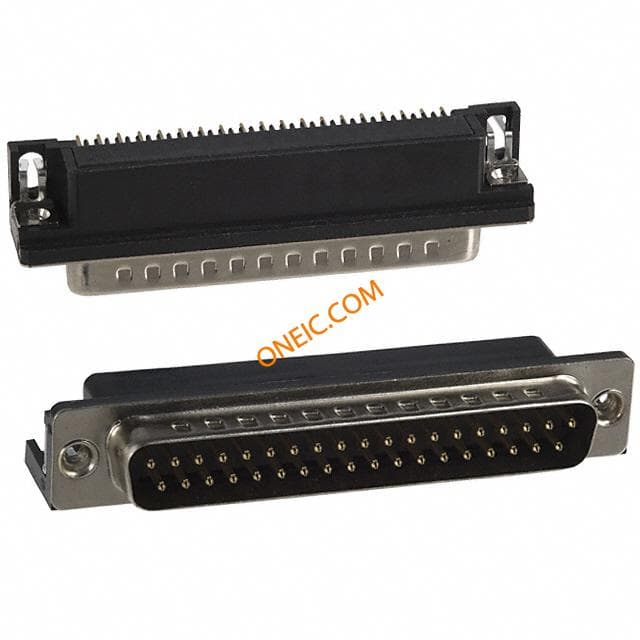

182-037-113R531
NorComp
D-Sub Standard Connectors 37P MALE RIGHT ANGLE .318 FOOTPRINT CONN DB37 MALE .318" R/A NICKEL D-SUB, PLUG, SOLDER, RIGHT ANGLE, 37WAY
.jpg&w=3840&q=75)
171-037-103L001
NorComp
D-Sub Standard Connectors 37P MALE SOLDER CUP CONN DB37 MALE SOLDER CUP NICKEL
973-037-010R011
NorComp
D-Sub Backshells 37P TOP ENTRY BLACK PLASTIC BACKSHELL DB37 STR BLK PLASTIC
171-037-102L001
NorComp
D-Sub Standard Connectors 37P Male CONN DB37 MALE SOLDER CUP TIN
.jpg&w=3840&q=75)
171-037-113R001
NorComp
D-Sub Standard Connectors 37P MALE VERTICAL DIP SOLDER CONN DB37 MALE DIP SOLDER NICKEL D-SUB, PLUG, SOLDER, STRAIGHT, 37WAY
170-037-173L000
NorComp
D-Sub Standard Connectors 37P MALE CRIMP POKE NICKEL SHELL CONN DB37 CRIMP MALE NICKEL D-SUB SHELL, DB37, CRIMP, PLUG, 37WAY
983-037-020R121
NorComp
D-Sub Backshells 37P STRAIGHT SNAP METALIZED PLASTIC BACKSHELL DB37 METALIZED PLASTIC
982-037-010R031
NorComp
D-Sub Backshells 37P TOP/90 DEG ENTRY GREY PLASTIC CONN BACKSHELL DB37 PLST GRY
183-037-113R161
NorComp
D-Sub Standard Connectors 37P Male R/A inside ground straps CONN DB37 MALE .590" R/A NICKEL
182-037-113R171
NorComp
D-Sub Standard Connectors 37P Male R/A ground straps 4-40 inserts CONN DB37 MALE .318" R/A NICKEL D-SUB, PLUG, SOLDER, RIGHT ANGLE, 37WAY

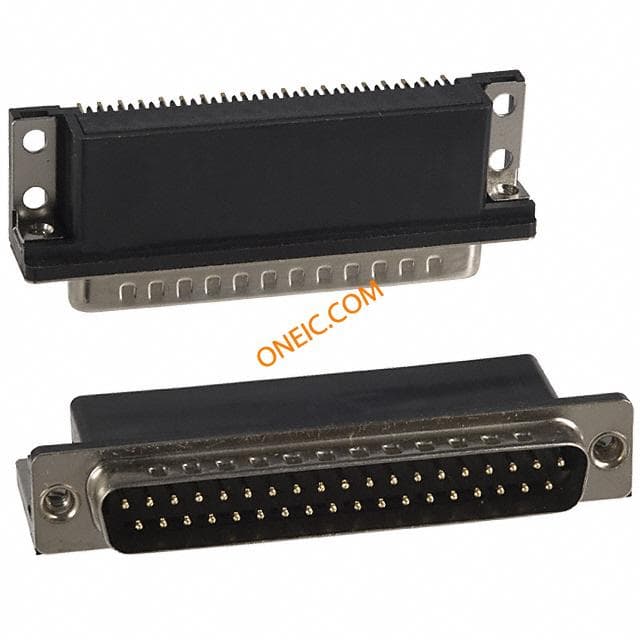

183-037-113R171
