170-015-273L030
| Manufacturer | |

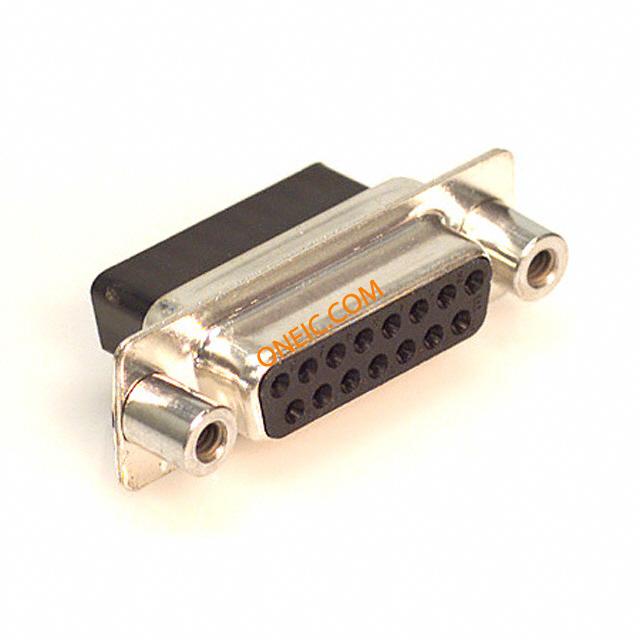

| Description | D-Sub Standard Connectors 15P Female Crimp w/ Clinch Nut 3 CONN DB15 CRIMP FEMALE NICKEL |
| Category |
Business
| Product Category | D-Sub Standard Connectors | Standard Package | 60 |
| Factory Pack Quantity | 60 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Voltage Rating | 500 VAC | Current Rating (Max) | 5 A |
Mechanical
| Color | Black | Packaging | Tray |
| Contact Type | Signal | Mounting Type | Free Hanging (In-Line) |
| Shell Plating | Nickel | Connector Type | Receptacle for Female Contacts |
| Flange Feature | Mating Side (4-40) | Mounting Style | Wire |
| Number of Rows | 2 | Connector Style | D-Sub |
| Termination Style | Crimp | Number of Contacts | 15 |
| Dielectric Material | Polybutylene Terephthalate (PBT) | Number of Positions | 15 |
| Shell Material, Finish | Steel, Nickel Plated | Shell Size, Connector Layout | 2 (DA, A) |
Product Info
| Note | Contacts Not Provided | Gender | Female |
| Series | 170 | ||
Environmental
| Operating Temperature | -50°C ~ 125°C | ||
Documents & Media
