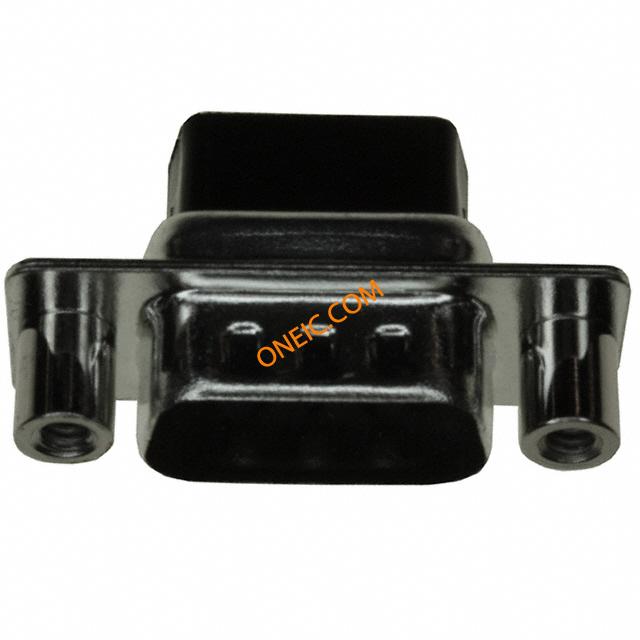

170-009-172L030
| Manufacturer | |
| Description | D-Sub Standard Connectors 9P Male CONN DB9 CRIMP MALE TIN |
| Category |
Business
| Product Category | D-Sub Standard Connectors | Standard Package | 80 |
Compliance
| RoHS | RoHS Compliant | ||
Mechanical
| Color | Black | Packaging | Tray |
| Contact Type | Signal | Mounting Type | Free Hanging (In-Line) |
| Connector Type | Plug for Male Contacts | Flange Feature | Mating Side (4-40) |
| Number of Rows | 2 | Connector Style | D-Sub |
| Dielectric Material | Polybutylene Terephthalate (PBT) | Number of Positions | 9 |
| Shell Material, Finish | Steel, Tin Plated | Shell Size, Connector Layout | 1 (DE, E) |
Product Info
| Note | Contacts Not Provided | ||
Environmental
| Operating Temperature | -50°C ~ 125°C | ||
