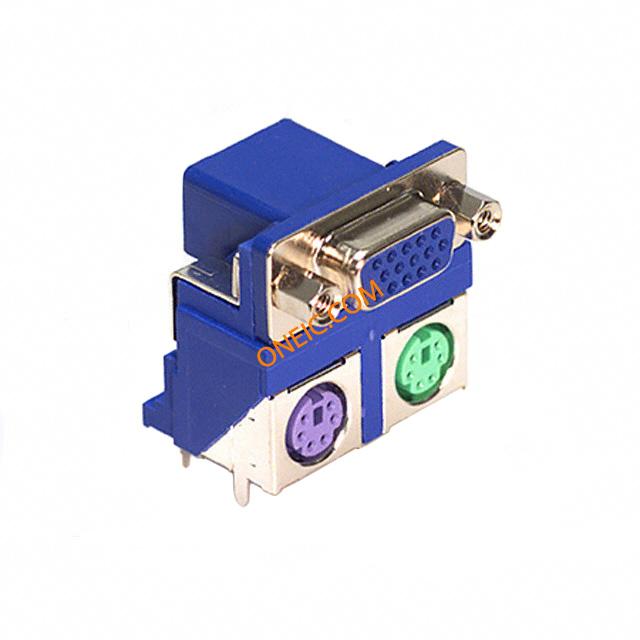

999-H15-PS2L571
| Manufacturer | |
| Description | CONN HD15 FEMALE OVER DUAL PS/2 D-Sub Dualport Connectors RA 15POS FEM 3A |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 16 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Current Rating (Max) | 3A | ||
Mechanical
| Packaging | Tray | Termination | Solder |
| Contact Type | Signal | Mounting Type | Panel Mount; Through Hole, Right Angle |
| Shell Plating | Nickel | Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold | Flange Feature | Mating Side; Female Screwlock (4-40) |
| Number of Rows | 3 | Shell Material | Steel |
| Connector Style | D-Sub, High Density | Contact Material | Brass |
| Housing Material | Polyamide (PA), Nylon | Termination Style | Through Hole |
| Number of Positions | 15 | Shell Material, Finish | Steel, Nickel Plated |
| Contact Finish Thickness | Flash | Shell Size, Connector Layout | 1 (DE, E) High Density |
Product Info
| Series | 999 | Features | Board Lock, PS/2 Receptacle |
| Number of Positions/Contacts | 15 | ||
Environmental
| Operating Temperature | -55°C ~ 105°C | ||
