点击放大查看

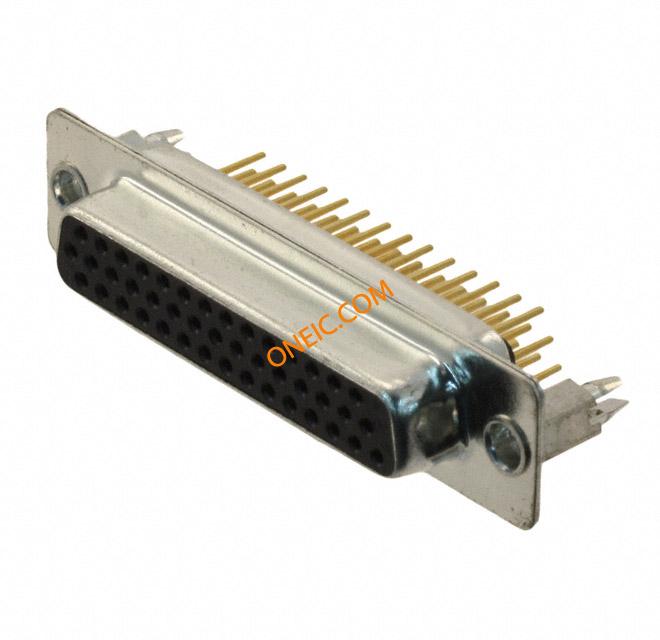

780-M44-213R051
| Manufacturer | |
| Description | CONN DB-44PS HD FEMALE VERT IP67 D-Sub Standard Connectors IP67 44P FEMALE CONN VRT .370 W/CN10 |
| Category |
对参数有疑问？问 AI 助手
Business
| Tradename | SEAL-D | Standard Package | 20 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Current Rating (Max) | 5A | ||
Mechanical
| Color | Black | Packaging | Tray |
| Termination | Solder | Contact Type | Signal |
| Mounting Type | Through Hole | Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold | Flange Feature | Board Side (4-40) |
| Number of Rows | 3 | Connector Style | D-Sub, High Density |
| Housing Material | Polyamide (PA6T), Nylon 6T | Number of Positions | 44 |
| Shell Material, Finish | Steel, Nickel Plated | Contact Finish Thickness | Flash |
| Shell Size, Connector Layout | 3 (DB, B) High Density | ||
Product Info
| Features | Board Lock | ||
Environmental
| Ingress Protection | IP67 - Dust Tight, Waterproof | Operating Temperature | -55°C ~ 105°C |
