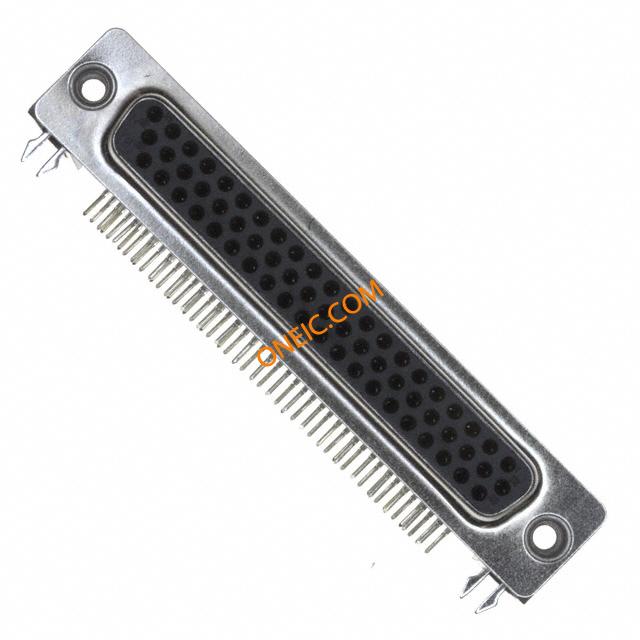

181-062-213R531
| Manufacturer | |
| Description | CONN DB62 FEMALE HI DENSITY R/A D-Sub High Density Connectors RA 62POS FEM SPCC |
| Category |
Business
| Product Category | D-Sub High Density Connectors | Standard Package | 40 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Voltage Rating | 500 V | Current Rating (Max) | 2A |
Mechanical
| Color | Black | Packaging | Tray |
| Insulation | Insulated | Termination | Solder |
| Contact Type | Signal | Mounting Type | Through Hole, Right Angle |
| Shell Plating | Nickel | Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold | Flange Feature | Housing/Shell (4-40) |
| Number of Rows | 3 | Shell Material | SPCC |
| Connector Style | D-Sub, High Density | Contact Material | Brass |
| Housing Material | Polyamide (PA9T), Nylon 9T | Termination Style | Through Hole |
| Number of Contacts | 62 | Insulation Material | Polyamide |
| Number of Positions | 62 | Shell Material, Finish | Steel, Nickel Plated |
| Contact Finish Thickness | Flash | Shell Size, Connector Layout | 4 (DC, C) High Density |
Product Info
| Gender | Female | Series | 181 |
| Features | Board Lock, Shielded | ||
Environmental
| Temperature Range | - 50 C to + 100 C | Operating Temperature | -50°C ~ 100°C |
